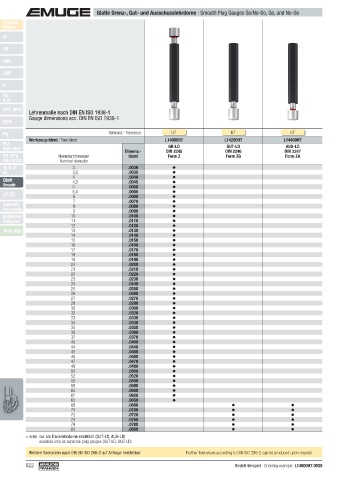

Glatte Grenz-, Gut- und Ausschusslehrdorne · Smooth Plug Gauges Go/No-Go, Go, and No-Go
Product
Finder

M
MF

UNC

UNF
G
Rp
R, Rc
NPT, NPTF
Lehrenmaße nach DIN EN ISO 1938-1
Gauge dimensions acc. DIN EN ISO 1938-1
BSW
Pg Toleranz · Tolerance H7 H7 H7
Werkzeug-Ident · Tool ident L14000H7 L14200H7 L14400H7
MJ
UNJC, UNJF GR-LD GUT-LD AUS-LD
Dimens.- DIN 2245 DIN 2246 DIN 2247
EG (STI) Nenndurchmesser Ident Form Z Form ZG Form ZA
SELF-LOCK Nominal diameter
Tr, Tr-F 3 .0030
Rd 3,5 .0035
4 .0040
Glatt 4,5 .0045
Smooth 5 .0050
5,5 .0055
GT, TD 6 .0060
7 .0070
Zubehör 8 .0080
Accessories 9 .0090
Kalibrieren 10 .0100
Calibration 11 .0110
12 .0120
Tech. Info 13 .0130
14 .0140
15 .0150
16 .0160
17 .0170
18 .0180
19 .0190
20 .0200
21 .0210
22 .0220
23 .0230
24 .0240
25 .0250
26 .0260
27 .0270
28 .0280
30 .0300
32 .0320
33 .0330
34 .0340
35 .0350
36 .0360
37 .0370
40 .0400
44 .0440
45 .0450
46 .0460
47 .0470
48 .0480
50 .0500
52 .0520
55 .0550
58 .0580
60 .0600
62 .0620
65 .0650
68 .0680
70 .0700
72 .0720
75 .0750
78 .0780
80 .0800
> ø 65 nur als Einzellehrdorne erhältlich (GUT-LD, AUS-LD)
available only as separate plug gauges (GUT-LD, AUS-LD)

Weitere Toleranzen nach DIN EN ISO 286-2 auf Anfrage herstellbar. Further tolerances according to DIN ISO 286-2 can be produced upon request.
622 Bestell-Beispiel · Ordering example: L14000H7.0030
