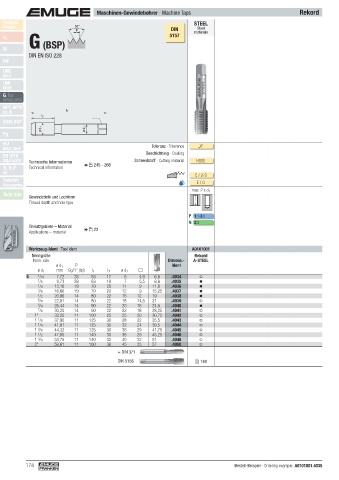

Maschinen-Gewindebohrer · Machine Taps Rekord
Product STEEL
Finder 55° Steel
P DIN materials
5157
v c
G (BSP)
M
DIN EN ISO 228
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF
Rc, W l 1
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF „X“
Beschichtung · Coating
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE
Tr, Tr-F Technical information  245 - 266
Rd
C / 2-3
Zubehör E / O
Accessories
max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1
N 2.3
Einsatzgebiete – Material
Applications – material  22

Werkzeug-Ident · Tool ident A0101001
Nenngröße Rekord
Nom. size Dimens.- A-STEEL
ø d 1 P Ident
ø d 1 mm Gg/1" (tpi) l 1 l 2 ø d 2
G 1 /16 7,72 28 63 17 6 4,9 6,8 .4034
1 /8 9,73 28 63 18 7 5,5 8,8 .4035
1 /4 13,16 19 70 20 11 9 11,8 .4036
3 /8 16,66 19 70 20 12 9 15,25 .4037
1 /2 20,96 14 80 22 16 12 19 .4038
5 /8 22,91 14 80 22 18 14,5 21 .4039
3 /4 26,44 14 90 22 20 16 24,5 .4040
7 /8 30,20 14 90 22 22 18 28,25 .4041
1" 33,25 11 100 25 25 20 30,75 .4042
1 1 /8 37,90 11 125 30 28 22 35,5 .4043
1 1 /4 41,91 11 125 30 32 24 39,5 .4044
1 3 /8 44,32 11 125 30 36 29 41,75 .4045
1 1 /2 47,80 11 140 30 36 29 45,25 .4046
1 3 /4 53,75 11 140 32 40 32 51 .4048
2" 59,61 11 160 36 45 35 57 .4050
≈ DIN 371
DIN 5156  168

174 Bestell-Beispiel · Ordering example: A0101001.4035
