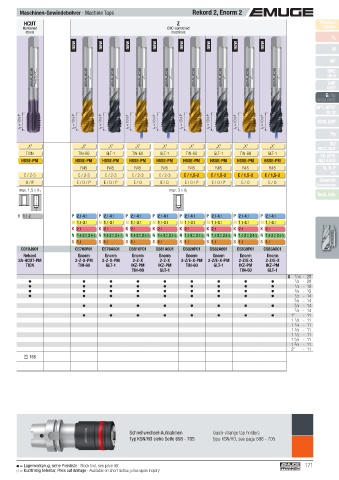

Maschinen-Gewindebohrer · Machine Taps Rekord 2, Enorm 2
VA H HCUT Z Product
55° Finder
P DIN Stainless steel Materials of high Hardened CNC-controlled
steels
machines
materials
tensile strength
5156
v c
G (BSP) new new new new new new new new M
DIN EN ISO 228
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF
l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
Toleranz · Tolerance „X“ „X“ „X“ „X“ „X“ „X“ „X“ „X“ „X“ „X“ „X“ „X“ MJ
UNJC, UNJF
Beschichtung · Coating GLT-1 NT TICN TICN TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1
EG (STI)
Technische Informationen  245 - 266 Schneidstoff · Cutting material HSSE HSSE HSSE VHM/KHM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM SELF-LOCK
Technical information R35 R45 R45 R45 R45 R45 R45 R45 R45 Tr, Tr-F
Rd
C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 Zubehör
E / O / P E / O / P E / O / P E / O O / P E / O / P E / O / P E / O E / O E / O / P E / O / P E / O E / O Accessories
max. 2,5 x d 1 max. 2 x d 1 max. 2 x d 1 max. 1,5 x d 1 max. 3 x d 1
Gewindetiefe und Lochform Tech. Info
Thread depth and hole type
1)
P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 5.1 H 1.1-2 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1
M 1.1- 3.1 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 N 2.4-7 N 2.4-7 N 1.5-6, 2.6-8 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1
Applications – material  22
N 4.1, 5.1 N 4.1, 5.1 N 4.1, 4.3- 5.2 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5
H 1.1-2 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C050C300 C0100501 C0109101 C1960901 C010J901 C5760F01 C576A601 C5810F01 C581A601 C5820F01 C582A601 C5830F01 C583A601
Nenngröße Enorm Rekord Rekord VHM/KHM Rekord Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm
Nom. size Dimens.- 2-VA 2A-H 2A-H Rekord 2A-HCUT-PM 2-Z-X-PM 2-Z-X-PM 2-Z-X 2-Z-X 2-Z/E-X-PM 2-Z/E-X-PM 2-Z/E-X 2-Z/E-X
ø d 1 P Ident GLT-1 NT TICN 2A-H/E-IKZ TICN TIN-60 GLT-1 IKZ-PM IKZ-PM TIN-60 GLT-1 IKZ-PM IKZ-PM
ø d 1 mm Gg/1" (tpi) l 1 l 2 ø d 2 TIN-60 GLT-1 TIN-60 GLT-1
G 1 /16 7,72 28 90 17 6 4,9 6,8 .4034 G 1 /16 - 28
1 /8 9,73 28 90 18 7 5,5 8,8 .4035 1 /8 - 28
1 /4 13,16 19 100 22 11 9 11,8 2) .4036 1 /4 - 19
3 /8 16,66 19 100 22 12 9 15,25 2) .4037 3 /8 - 19
1 /2 20,96 14 125 25 16 12 19 2) .4038 1 /2 - 14
5 /8 22,91 14 125 25 18 14,5 21 .4039 5 /8 - 14
3 /4 26,44 14 140 28 20 16 24,5 .4040 3 /4 - 14
7 /8 30,20 14 150 28 22 18 28,25 .4041 7 /8 - 14
1" 33,25 11 160 30 25 20 30,75 .4042 1" - 11
1 1 /8 37,90 11 170 30 28 22 35,5 .4043 1 1 /8 - 11
1 1 /4 41,91 11 170 30 32 24 39,5 .4044 1 1 /4 - 11
1 3 /8 44,32 11 180 32 36 29 41,75 .4045 1 3 /8 - 11
1 1 /2 47,80 11 190 32 36 29 45,25 .4046 1 1 /2 - 11
1 5 /8 52,00 11 190 32 40 32 49,5 .4047 1 5 /8 - 11
1 3 /4 53,75 11 190 32 40 32 51 .4048 1 3 /4 - 11
2" 59,61 11 220 40 45 35 57 .4050 2" - 11
≈ DIN 371  166
DIN 5157

Schnellwechsel-Aufnahmen Quick-change tap holders
Typ KSN/HD siehe Seite 698 - 705 type KSN/HD, see page 698 - 705

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 171
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
