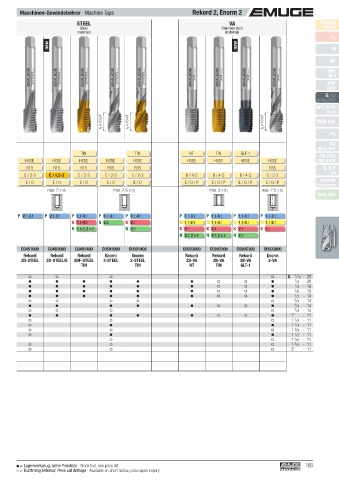

Page 169 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Rekord 2, Enorm 2
STEEL STEEL VA Product
55° Finder
Steel
Steel
P DIN materials materials Stainless steel
materials
5156
v c
G (BSP) new new M
DIN EN ISO 228
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF
l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
Toleranz · Tolerance „X“ MJ
UNJC, UNJF
Beschichtung · Coating TIN TIN TIN TIN NT TIN GLT-1
EG (STI)
Technische Informationen  245 - 266 Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE SELF-LOCK
Technical information R15 R15 R15 R35 R35 R35 Tr, Tr-F
Rd
C / 2-3 B / 4-5 B / 4-5 B / 4-5 B / 4-5 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 B / 4-5 B / 4-5 B / 4-5 C / 2-3 Zubehör
E / O E / O E / O E / O E / O E / O E / O E / O E / O E / O E / O / P E / O / P E / O / P E / O / P Accessories
max. 2 x d 1 max. 3 x d 1 max. 2 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2,5 x d 1
Gewindetiefe und Lochform Tech. Info
Thread depth and hole type

P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 3.1 P 2.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 3.1
N 2.3 N 2.2 K 2.1 K 2.1 K 1.1- 4.2 N 2.2 K 2.1 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1
Einsatzgebiete – Material N 2.2, 2.4-5 N 1.4-5, 2.4-5 N 2.2 K 2.1 K 2.1 K 2.1 K 2.1
Applications – material  22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2

Werkzeug-Ident · Tool ident C0101001 C0208900 C0208400 C0201000 C0201400 C0451000 C0461000 C0401400 C0501000 C0501400 C0203000 C0203100 C020C300 C0503000
Nenngröße Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Enorm Enorm Rekord Rekord Rekord Enorm
Nom. size Dimens.- 2A-STEEL 2B-STEEL-L 2B-STEEL-L 2B-STEEL-M 2B-STEEL-M 2D-STEEL 2D-STEEL/E 2DF-STEEL 2-STEEL 2-STEEL 2B-VA 2B-VA 2B-VA 2-VA
ø d 1 P Ident TIN TIN TIN TIN NT TIN GLT-1
ø d 1 mm Gg/1" (tpi) l 1 l 2 ø d 2
G 1 /16 7,72 28 90 17 6 4,9 6,8 .4034 G 1 /16 - 28
1 /8 9,73 28 90 18 7 5,5 8,8 .4035 1 /8 - 28
1 /4 13,16 19 100 22 11 9 11,8 .4036 1 /4 - 19
3 /8 16,66 19 100 22 12 9 15,25 .4037 3 /8 - 19
1 /2 20,96 14 125 25 16 12 19 .4038 1 /2 - 14
5 /8 22,91 14 125 25 18 14,5 21 .4039 5 /8 - 14
3 /4 26,44 14 140 28 20 16 24,5 .4040 3 /4 - 14
7 /8 30,20 14 150 28 22 18 28,25 .4041 7 /8 - 14
1" 33,25 11 160 30 25 20 30,75 .4042 1" - 11
1 1 /8 37,90 11 170 30 28 22 35,5 .4043 1 1 /8 - 11
1 1 /4 41,91 11 170 30 32 24 39,5 .4044 1 1 /4 - 11
1 3 /8 44,32 11 180 32 36 29 41,75 .4045 1 3 /8 - 11
1 1 /2 47,80 11 190 32 36 29 45,25 .4046 1 1 /2 - 11
1 5 /8 52,00 11 190 32 40 32 49,5 .4047 1 5 /8 - 11
1 3 /4 53,75 11 190 32 40 32 51 .4048 1 3 /4 - 11
2" 59,61 11 220 40 45 35 57 .4050 2" - 11
≈ DIN 371
DIN 5157  174

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 169
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
