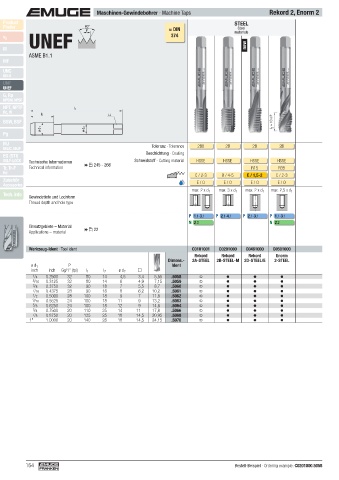

Page 164 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Rekord 2, Enorm 2
Product STEEL
Finder 60° ≈ DIN materials
Steel
UNEF
P
v c 374
M new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2BX 2B 2B 2B
Beschichtung · Coating
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266 R15 R35
Rd
C / 2-3 B / 4-5 E / 1,5-2 C / 2-3
Zubehör E / O E / O E / O E / O
Accessories
max. 2 x d 1 max. 3 x d 1 max. 2 x d 1 max. 2,5 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 2.1- 4.1 P 2.1- 3.1 P 1.1- 3.1
N 2.3 N 2.2
Einsatzgebiete – Material
Applications – material  22

Werkzeug-Ident · Tool ident C0101001 C0201000 C0461000 C0501000
Rekord Rekord Rekord Enorm
Dimens.- 2A-STEEL 2B-STEEL-M 2D-STEEL/E 2-STEEL
ø d 1 P Ident
inch inch Gg/1" (tpi) l 1 l 2 ø d 2
1 /4 0.2500 32 80 14 4,5 3,4 5,55 .5058
5 /16 0.3125 32 80 14 6 4,9 7,15 .5059
3 /8 0.3750 32 90 18 7 5,5 8,7 .5060
7 /16 0.4375 28 90 18 8 6,2 10,2 .5061
1 /2 0.5000 28 100 18 9 7 11,8 .5062
9 /16 0.5625 24 100 18 11 9 13,2 .5063
5 /8 0.6250 24 100 18 12 9 14,8 .5064
3 /4 0.7500 20 110 25 14 11 17,8 .5066
7 /8 0.8750 20 125 25 18 14,5 20,95 .5068
1" 1.0000 20 140 28 18 14,5 24,15 .5070

164 Bestell-Beispiel · Ordering example: C0201000.5058
