Lubrication
2

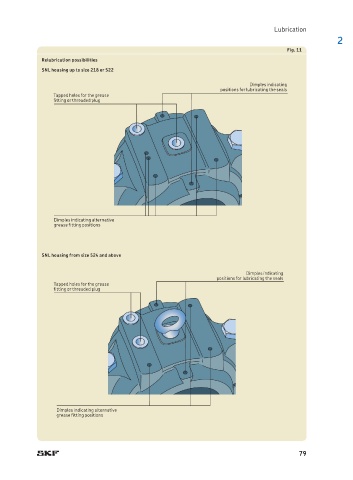

Fig. 11
Relubrication possibilities
SNL housing up to size 218 or 522
Dimples indicating
positions for lubricating the seals
Tapped holes for the grease
fitting or threaded plug

Dimples indicating alternative
grease fitting positions

SNL housing from size 524 and above

Dimples indicating
positions for lubricating the seals
Tapped holes for the grease
fitting or threaded plug

Dimples indicating alternative
grease fitting positions
