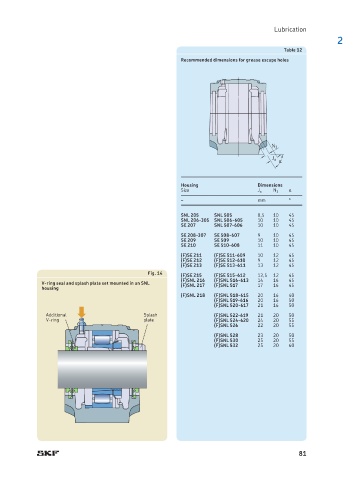

Page 85 - SKF-bearing-housings

Lubrication
2
Table 12
Recommended dimensions for grease escape holes

N 3
J a
a

Housing Dimensions
Size J a N 3 a
– mm °
SNL 205 SNL 505 8,5 10 45
SNL 206-305 SNL 506-605 10 10 45
SE 207 SNL 507-606 10 10 45
SE 208-307 SE 508-607 9 10 45
SE 209 SE 509 10 10 45
SE 210 SE 510-608 11 10 45
(F)SE 211 (F)SE 511-609 10 12 45
(F)SE 212 (F)SE 512-610 9 12 45
(F)SE 213 (F)SE 513-611 13 12 45
Fig. 14
(F)SE 215 (F)SE 515-612 12,5 12 45
(F)SNL 216 (F)SNL 516-613 14 16 45
V-ring seal and splash plate set mounted in an SNL (F)SNL 217 (F)SNL 517 17 16 45
housing
(F)SNL 218 (F)SNL 518-615 20 16 40
(F)SNL 519-616 20 16 50
(F)SNL 520-617 21 16 50
Additional Splash (F)SNL 522-619 21 20 50
V-ring plate (F)SNL 524-620 24 20 55
(F)SNL 526 22 20 55
(F)SNL 528 23 20 50
(F)SNL 530 25 20 55
(F)SNL 532 25 20 60

81
