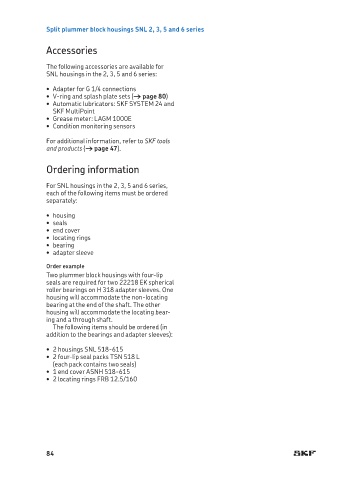

Split plummer block housings SNL 2, 3, 5 and 6 series

A ccessories

The following accessories are available for
SNL housings in the 2, 3, 5 and 6 series:

• Adapter for G 1/4 connections
• V-ring and splash plate sets († page 80)
• Automatic lubricators: SKF SYSTEM 24 and
SKF MultiPoint
• Grease meter: LAGM 1000E
• Condition monitoring sensors
For additional information, refer to SKF tools
and products († page 47).

Ordering information
For SNL housings in the 2, 3, 5 and 6 series,
each of the following items must be ordered
separately:
• housing
• seals
• end cover
• locating rings
• bearing
• adapter sleeve
Order example
Two plummer block housings with four-lip
seals are required for two 22218 EK spherical
roller bearings on H 318 adapter sleeves. One
housing will accommodate the non-locating
bearing at the end of the shaft. The other
housing will accommodate the locating bear-
ing and a through shaft.
The following items should be ordered (in
addition to the bearings and adapter sleeves):

• 2 housings SNL 518-615
• 2 four-lip seal packs TSN 518 L
(each pack contains two seals)
• 1 end cover ASNH 518-615
• 2 locating rings FRB 12.5/160
