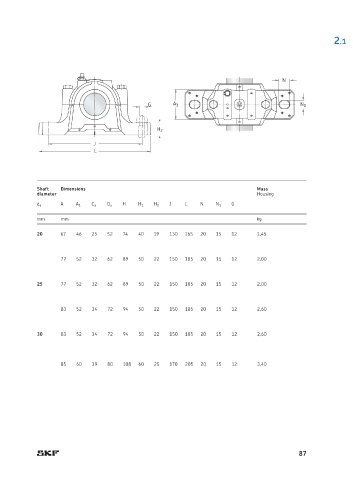

Page 91 - SKF-bearing-housings
P. 91
2.1
N
G A 1 N 1
H 2
J
L
Shaft Dimensions Mass
diameter Housing
A H J L N G
d a A 1 C a D a H 1 H 2 N 1
mm mm kg
20 67 46 25 52 74 40 19 130 165 20 15 12 1,45
77 52 32 62 89 50 22 150 185 20 15 12 2,00
25 77 52 32 62 89 50 22 150 185 20 15 12 2,00
83 52 34 72 94 50 22 150 185 20 15 12 2,60
30 83 52 34 72 94 50 22 150 185 20 15 12 2,60
85 60 39 80 108 60 25 170 205 20 15 12 3,40
87
