Condition monitoring
2
C ondition monitoring

SNL housings have appropriate positions for
condition monitoring sensors († fig. 15).
Position 1 is a measurement point perpen-
dicular to the shaft, and should be used when
the housing is hung from its support or when
loads act away from the support surface.
Position 2 is a measurement point parallel
to the shaft and should be used when the loads
act toward the support surface.
Both positions 1 and 2 are in accordance
with ISO 10816-1.
Position 3 is a measurement point that is
approximately 20° to 45° to the shaft axis.

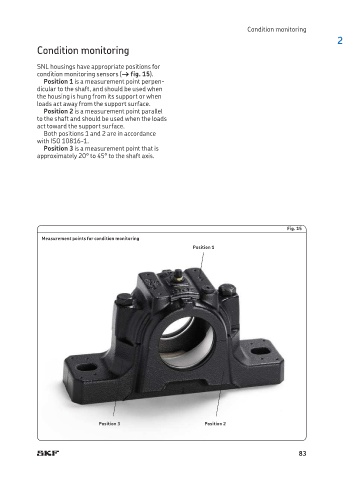

Fig. 15
Measurement points for condition monitoring
Position 1

Position 3 Position 2

83
