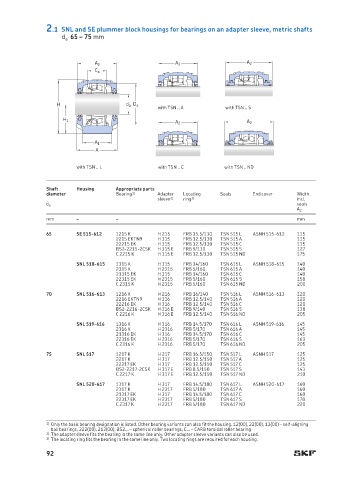

2.1 SNL and SE plummer block housings for bearings on an adapter sleeve, metric shafts
d a 65 – 75 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
mm – – mm
65 SE 515-612 1215 K H 215 FRB 15.5/130 TSN 515 L ASNH 515-612 115
2215 EKTN9 H 315 FRB 12.5/130 TSN 515 A 115
22215 EK H 315 FRB 12.5/130 TSN 515 C 115
BS2-2215-2CSK H 315 E FRB 9/130 TSN 515 S 127
C 2215 K H 315 E FRB 12.5/130 TSN 515 ND 175
SNL 518-615 1315 K H 315 FRB 14/160 TSN 615 L ASNH 518-615 140
2315 K H 2315 FRB 5/160 TSN 615 A 140
21315 EK H 315 FRB 14/160 TSN 615 C 140
22315 EK H 2315 FRB 5/160 TSN 615 S 158
C 2315 K H 2315 FRB 5/160 TSN 615 ND 200
70 SNL 516-613 1216 K H 216 FRB 16/140 TSN 516 L ASNH 516-613 120
2216 EKTN9 H 316 FRB 12.5/140 TSN 516 A 120
22216 EK H 316 FRB 12.5/140 TSN 516 C 120
BS2-2216-2CSK H 316 E FRB 9/140 TSN 516 S 138
C 2216 K H 316 E FRB 12.5/140 TSN 516 ND 205
SNL 519-616 1316 K H 316 FRB 14.5/170 TSN 616 L ASNH 519-616 145
2316 K H 2316 FRB 5/170 TSN 616 A 145
21316 EK H 316 FRB 14.5/170 TSN 616 C 145
22316 EK H 2316 FRB 5/170 TSN 616 S 163
C 2316 K H 2316 FRB 5/170 TSN 616 ND 205
75 SNL 517 1217 K H 217 FRB 16.5/150 TSN 517 L ASNH 517 125
2217 K H 317 FRB 12.5/150 TSN 517 A 125
22217 EK H 317 FRB 12.5/150 TSN 517 C 125
BS2-2217-2CSK H 317 E FRB 8.5/150 TSN 517 S 143
C 2217 K H 317 E FRB 12.5/150 TSN 517 ND 210
SNL 520-617 1317 K H 317 FRB 14.5/180 TSN 617 L ASNH 520-617 160
2317 K H 2317 FRB 5/180 TSN 617 A 160
21317 EK H 317 FRB 14.5/180 TSN 617 C 160
22317 EK H 2317 FRB 5/180 TSN 617 S 178
C 2317 K H 2317 FRB 5/180 TSN 617 ND 220
1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00) – self-aligning
ball bearings, 222(00), 213(00), BS2… – spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
