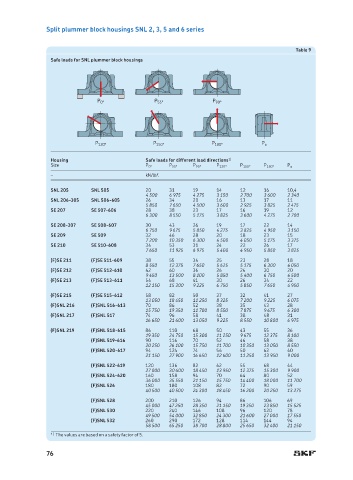

Split plummer block housings SNL 2, 3, 5 and 6 series
Table 9
Safe loads for SNL plummer block housings
P 0° P 55° P 90°
P 120° P 150° P 180° P a
Housing Safe loads for different load directions 1)
Size P 0° P 55° P 90° P 120° P 150° P 180° P a
– kN/lbf.
SNL 205 SNL 505 20 31 19 14 12 16 10,4
4 500 6 975 4 275 3 150 2 700 3 600 2 340
SNL 206-305 SNL 506-605 26 34 20 16 13 17 11
5 850 7 650 4 500 3 600 2 925 3 825 2 475
SE 207 SE 507-606 28 38 23 17 16 19 12
6 300 8 550 5 175 3 825 3 600 4 275 2 700
SE 208-307 SE 508-607 30 43 26 19 17 22 14
6 750 9 675 5 850 4 275 3 825 4 950 3 150
SE 209 SE 509 32 46 28 20 18 23 15
7 200 10 350 6 300 4 500 4 050 5 175 3 375
SE 210 SE 510-608 34 53 31 24 22 26 17
7 650 11 925 6 975 5 400 4 950 5 850 3 825
(F)SE 211 (F)SE 511-609 38 55 34 25 23 28 18
8 550 12 375 7 650 5 625 5 175 6 300 4 050
(F)SE 212 (F)SE 512-610 42 60 36 26 24 30 20
9 450 13 500 8 100 5 850 5 400 6 750 4 500
(F)SE 213 (F)SE 513-611 54 68 41 30 26 34 22
12 150 15 300 9 225 6 750 5 850 7 650 4 950
(F)SE 215 (F)SE 515-612 58 82 50 37 32 41 27
13 050 18 450 11 250 8 325 7 200 9 225 6 075
(F)SNL 216 (F)SNL 516-613 70 86 52 38 35 43 28
15 750 19 350 11 700 8 550 7 875 9 675 6 300
(F)SNL 217 (F)SNL 517 74 96 58 41 38 48 31
16 650 21 600 13 050 9 225 8 550 10 800 6 975
(F)SNL 219 (F)SNL 518-615 86 110 68 50 43 55 36
19 350 24 750 15 300 11 250 9 675 12 375 8 100
(F)SNL 519-616 90 116 70 52 46 58 38
20 250 26 100 15 750 11 700 10 350 13 050 8 550
(F)SNL 520-617 94 124 74 56 50 62 40
21 150 27 900 16 650 12 600 11 250 13 950 9 000
(F)SNL 522-619 120 136 82 62 55 68 44
27 000 30 600 18 450 13 950 12 375 15 300 9 900
(F)SNL 524-620 160 158 94 70 64 80 52
36 000 35 550 21 150 15 750 14 400 18 000 11 700
(F)SNL 526 180 180 108 82 72 90 59
40 500 40 500 24 300 18 450 16 200 20 250 13 275
(F)SNL 528 200 210 126 94 86 106 69
45 000 47 250 28 350 21 150 19 350 23 850 15 525
(F)SNL 530 220 240 146 108 96 120 78
49 500 54 000 32 850 24 300 21 600 27 000 17 550
(F)SNL 532 260 290 172 128 114 144 94
58 500 65 250 38 700 28 800 25 650 32 400 21 150
1) 1) The values are based on a safety factor of 5. The values are based on a safety factor of 5.
