D esign considerations
2
Load carrying capacity cyclic loads or dynamic imbalance, contact the
SNL housings are intended for loads acting SKF application engineering service.
perpendicularly toward the support surface. If
the housing is supported over its entire base
and the loads are purely perpendicular, loads
are limited only by the bearing. If loads acting
in other directions occur, or if the housing is
not supported over its entire base, be sure
that the magnitude of the load is permissible
for the housing, the cap bolts and the attach-
ment bolts. When housings are subjected to

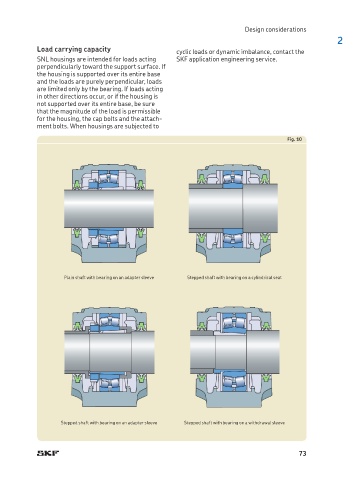

Fig. 10

Plain shaft with bearing on an adapter sleeve Stepped shaft with bearing on a cylindrical seat

Stepped shaft with bearing on an adapter sleeve Stepped shaft with bearing on a withdrawal sleeve

73
