Using sealed bearings
2

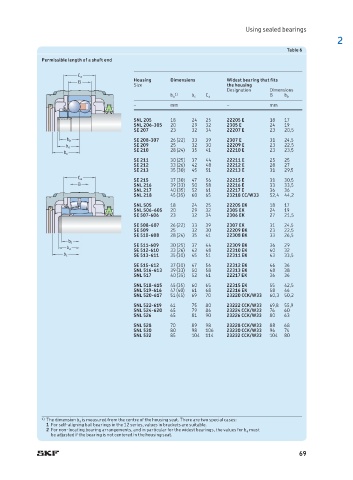

Table 6
Permissible length of a shaft end

C a
Housing Dimensions Widest bearing that fits
B
Size the housing
Designation Dimensions
1) B
b a b c C a b b
– mm – mm
SNL 205 18 24 25 22205 E 18 17
SNL 206-305 20 29 32 2305 E 24 19
SE 207 23 32 34 22207 E 23 20,5
b b SE 208-307 26 (22) 33 39 2307 E 31 24,5
SE 209 25 32 30 22209 E 23 22,5
b a
SE 210 28 (24) 35 41 22210 E 23 23,5
b c
SE 211 30 (25) 37 44 22211 E 25 25
SE 212 33 (26) 42 48 22212 E 28 27
SE 213 35 (30) 45 51 22213 E 31 29,5
SE 215 37 (30) 47 56 22215 E 31 30,5
C a
B SNL 216 39 (33) 50 58 22216 E 33 33,5
SNL 217 40 (35) 52 61 22217 E 36 36
SNL 218 45 (35) 60 65 23218 CC/W33 52,4 44,2
SNL 505 18 24 25 22205 EK 18 17
SNL 506-605 20 29 32 2305 EK 24 19
SE 507-606 23 32 34 2306 EK 27 21,5
SE 508-607 26 (22) 33 39 2307 EK 31 24,5
SE 509 25 32 30 22209 EK 23 22,5
SE 510-608 28 (24) 35 41 22308 EK 33 26,5
b b
SE 511-609 30 (25) 37 44 22309 EK 36 29
b a
SE 512-610 33 (26) 42 48 22310 EK 40 32
b c SE 513-611 35 (30) 45 51 22311 EK 43 33,5
SE 515-612 37 (30) 47 56 22312 EK 46 36
SNL 516-613 39 (33) 50 58 22313 EK 48 38
SNL 517 40 (35) 52 61 22217 EK 36 36
SNL 518-615 45 (35) 60 65 22315 EK 55 42,5
SNL 519-616 47 (40) 61 68 22316 EK 58 46
SNL 520-617 51 (45) 69 70 23220 CCK/W33 60,3 50,2
SNL 522-619 61 75 80 23222 CCK/W33 69,8 55,9
SNL 524-620 65 79 86 23224 CCK/W33 76 60
SNL 526 65 81 90 23226 CCK/W33 80 63
SNL 528 70 89 98 23228 CCK/W33 88 68
SNL 530 80 98 106 23230 CCK/W33 96 74
SNL 532 85 104 114 23232 CCK/W33 104 80

1) The dimension b a is measured from the centre of the housing seat. There are two special cases:
1 For self-aligning ball bearings in the 12 series, values in brackets are suitable.
2 For non-locating bearing arrangements, and in particular for the widest bearings, the values for b a must
be adj usted if the bearing is not centered in the housing seat.
