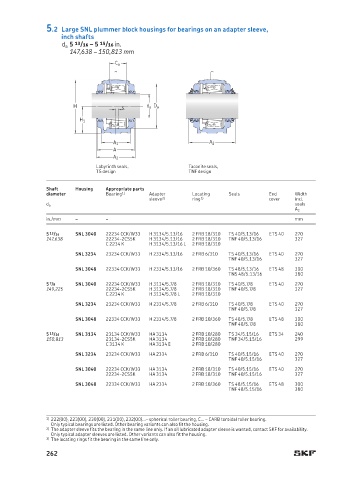

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 5 13 /16 – 5 15 /16 in.
147,638 – 150,813 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
5 13 /16 SNL 3040 22234 CCK/W33 H 3134/5.13/16 2 FRB 18/310 TS 40/5.13/16 ETS 40 270
147,638 22234-2CS5K H 3134/5.13/16 2 FRB 18/310 TNF 40/5.13/16 327
C 2234 K H 3 134/5.13/16 L 2 FRB 18/310
SNL 3234 23234 CCK/W33 H 2334/5.13/16 2 FRB 6/310 TS 40/5.13/16 ETS 40 270
TNF 40/5.13/16 327
SNL 3048 22334 CCK/W33 H 2334/5.13/16 2 FRB 10/360 TS 48/5.13/16 ETS 48 300
TNS 48/5.13/16 380
5 7 /8 SNL 3040 22234 CCK/W33 H 3134/5.7/8 2 FRB 18/310 TS 40/5.7/8 ETS 40 270
149,225 22234-2CS5K H 3134/5.7/8 2 FRB 18/310 TNF 40/5.7/8 327
C 2234 K H 3 134/5.7/8 L 2 FRB 18/310
SNL 3234 23234 CCK/W33 H 2334/5.7/8 2 FRB 6/310 TS 40/5.7/8 ETS 40 270
TNF 40/5.7/8 327
SNL 3048 22334 CCK/W33 H 2334/5.7/8 2 FRB 10/360 TS 48/5.7/8 ETS 48 300
TNF 48/5.7/8 380
5 15 /16 SNL 3134 23134 CCK/W33 HA 3134 2 FRB 10/280 TS 34/5.15/16 ETS 34 240
150,813 23134-2CS5K HA 3134 2 FRB 10/280 TNF 34/5.15/16 299
C 3134 K HA 3134 E 2 FRB 10/280
SNL 3234 23234 CCK/W33 HA 2334 2 FRB 6/310 TS 40/5.15/16 ETS 40 270
TNF 40/5.15/16 327
SNL 3040 22234 CCK/W33 HA 3134 2 FRB 18/310 TS 40/5.15/16 ETS 40 270
22234-2CS5K HA 3134 2 FRB 18/310 TNF 40/5.15/16 327
SNL 3048 22334 CCK/W33 HA 2334 2 FRB 10/360 TS 48/5.15/16 ETS 48 300
TNF 48/5.15/16 380

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
