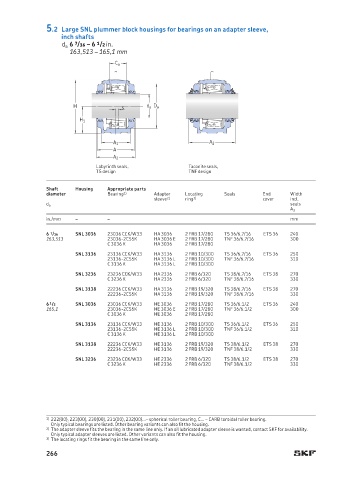

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 6 7 /16 – 6 1 /2 in.
163,513 – 165,1 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
6 7 /16 SNL 3036 23036 CCK/W33 HA 3036 2 FRB 17/280 TS 36/6.7/16 ETS 36 240
163,513 23036-2CS5K HA 3036 E 2 FRB 17/280 TNF 36/6.7/16 300
C 3036 K HA 3036 2 FRB 17/280
SNL 3136 23136 CCK/W33 HA 3136 2 FRB 10/300 TS 36/6.7/16 ETS 36 250
23136-2CS5K HA 3136 L 2 FRB 10/300 TNF 36/6.7/16 310
C 3136 K HA 3136 L 2 FRB 10/300
SNL 3236 23236 CCK/W33 HA 2336 2 FRB 6/320 TS 38/6.7/16 ETS 38 270
C 3236 K HA 2336 2 FRB 6/320 TNF 38/6.7/16 330
SNL 3138 22236 CCK/W33 HA 3136 2 FRB 19/320 TS 38/6.7/16 ETS 38 270
22236-2CS5K HA 3136 2 FRB 19/320 TNF 38/6.7/16 330
6 1 /2 SNL 3036 23036 CCK/W33 HE 3036 2 FRB 17/280 TS 36/6.1/2 ETS 36 240
165,1 23036-2CS5K HE 3036 E 2 FRB 17/280 TNF 36/6.1/2 300
C 3036 K HE 3036 2 FRB 17/280
SNL 3136 23136 CCK/W33 HE 3136 2 FRB 10/300 TS 36/6.1/2 ETS 36 250
23136-2CS5K HE 3136 L 2 FRB 10/300 TNF 36/6.1/2 310
C 3136 K HE 3136 L 2 FRB 10/300
SNL 3138 22236 CCK/W33 HE 3136 2 FRB 19/320 TS 38/6.1/2 ETS 38 270
22236-2CS5K HE 3136 2 FRB 19/320 TNF 38/6.1/2 330
SNL 3236 23236 CCK/W33 HE 2336 2 FRB 6/320 TS 38/6.1/2 ETS 38 270
C 3236 K HE 2336 2 FRB 6/320 TNF 38/6.1/2 330

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
266
