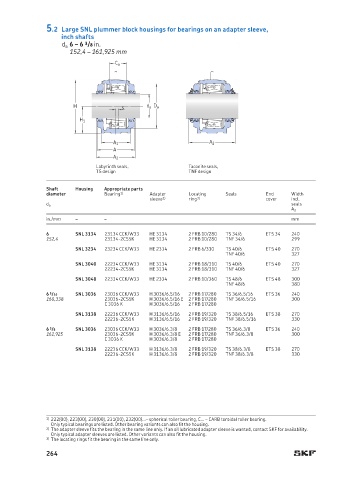

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 6 – 6 3 /8 in.
152,4 – 161,925 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
6 SNL 3134 23134 CCK/W33 HE 3134 2 FRB 10/280 TS 34/6 ETS 34 240
152,4 23134-2CS5K HE 3134 2 FRB 10/280 TNF 34/6 299
SNL 3234 23234 CCK/W33 HE 2334 2 FRB 6/310 TS 40/6 ETS 40 270
TNF 40/6 327
SNL 3040 22234 CCK/W33 HE 3134 2 FRB 18/310 TS 40/6 ETS 40 270
22234-2CS5K HE 3134 2 FRB 18/310 TNF 40/6 327
SNL 3048 22334 CCK/W33 HE 2334 2 FRB 10/360 TS 48/6 ETS 48 300
TNF 48/6 380
6 5 /16 SNL 3036 23036 CCK/W33 H 3 036/6.5/16 2 FRB 17/280 TS 36/6.5/16 ETS 36 240
160,338 23036-2CS5K H 3 036/6.5/16 E 2 FRB 17/280 TNF 36/6.5/16 300
C 3036 K H 3 036/6.5/16 2 FRB 17/280
SNL 3138 22236 CCK/W33 H 3 136/6.5/16 2 FRB 19/320 TS 38/6.5/16 ETS 38 270
22236-2CS5K H 3 136/6.5/16 2 FRB 19/320 TNF 38/6.5/16 330
6 3 /8 SNL 3036 23036 CCK/W33 H 3036/6.3/8 2 FRB 17/280 TS 36/6.3/8 ETS 36 240
161,925 23036-2CS5K H 3 036/6.3/8 E 2 FRB 17/280 TNF 36/6.3/8 300
C 3036 K H 3036/6.3/8 2 FRB 17/280
SNL 3138 22236 CCK/W33 H 3136/6.3/8 2 FRB 19/320 TS 38/6.3/8 ETS 38 270
22236-2CS5K H 3136/6.3/8 2 FRB 19/320 TNF 38/6.3/8 330

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
