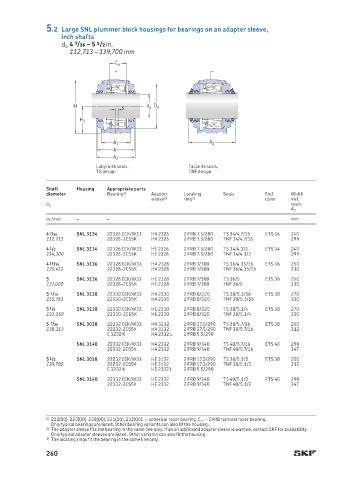

5.2 Large SNL plummer block housings for bearings on an adapter sleeve,
inch shafts
d a 4 7 /16 – 5 1 /2 in.
112,713 – 139,700 mm
C a

H s d a D a
H 1

A 1 A 2
A
A 2
Labyrinth seals, Taconite seals,
TS design TNF design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End Width
sleeve 2) ring 3) cover incl.
seals
d a
A 2
in./mm – – mm
4 7 /16 SNL 3134 22326 CCK/W33 HA 2326 2 FRB 7.5/280 TS 34/4.7/16 ETS 34 240
112,713 22326-2CS5K HA 2326 2 FRB 7.5/280 TNF 34/4.7/16 299
4 1 /2 SNL 3134 22326 CCK/W33 HE 2326 2 FRB 7.5/280 TS 34/4.1/2 ETS 34 240
114,300 22326-2CS5K HE 2326 2 FRB 7.5/280 TNF 34/4.1/2 299
4 15 /16 SNL 3136 22328 CCK/W33 HA 2328 2 FRB 7/300 TS 36/4.15/16 ETS 36 250
125,413 22328-2CS5K HA 2328 2 FRB 7/300 TNF 36/4.15/16 310
5 SNL 3136 22328 CCK/W33 HE 2328 2 FRB 7/300 TS 36/5 ETS 36 250
127,000 22328-2CS5K HE 2328 2 FRB 7/300 TNF 36/5 310
5 3 /16 SNL 3138 22330 CCK/W33 HA 2330 2 FRB 8/320 TS 38/5.3/16 ETS 38 270
131,763 22330-2CS5K HA 2330 2 FRB 8/320 TNF 38/5.3/16 330
5 1 /4 SNL 3138 22330 CCK/W33 HE 2330 2 FRB 8/320 TS 38/5.1/4 ETS 38 270
133,350 22330-2CS5K HE 2330 2 FRB 8/320 TNF 38/5.1/4 330
5 7 /16 SNL 3038 22232 CCK/W33 HA 3132 2 FRB 17.5/290 TS 38/5.7/16 ETS 38 250
138,113 22232-2CS5K HA 3132 2 FRB 17.5/290 TNF 38/5.7/16 312
C 3232 K HA 2332 L 2 FRB 5.5/290
SNL 3140 22332 CCK/W33 HA 2332 2 FRB 9/340 TS 40/5.7/16 ETS 40 290
22332-2CS5K HA 2332 2 FRB 9/340 TNF 40/5.7/16 347
5 1 /2 SNL 3038 22232 CCK/W33 HE 3132 2 FRB 17.5/290 TS 38/5.1/2 ETS 38 250
139,700 22232-2CS5K HE 3132 2 FRB 17.5/290 TNF 38/5.1/2 312
C 3232 K HE 2332 L 2 FRB 5.5/290
SNL 3140 22332 CCK/W33 HE 2332 2 FRB 9/340 TS 40/5.1/2 ETS 40 290
22332-2CS5K HE 2332 2 FRB 9/340 TNF 40/5.1/2 347

1) 222(00), 223(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing.
Only typical bearings are listed. Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. If an oil lubricated adapter sleeve is wanted, contact SKF for availability.
Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
