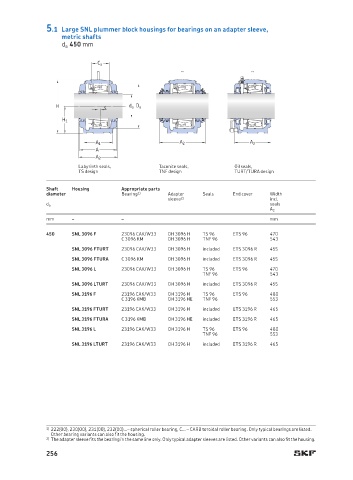

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 450 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
450 SNL 3096 F 23096 CAK/W33 OH 3 096 H TS 96 ETS 96 470
C 3096 KM OH 3096 H TNF 96 543
SNL 3096 FTURT 23096 CAK/W33 OH 3096 H included ETS 3096 R 455
SNL 3096 FTURA C 3096 KM OH 3096 H included ETS 3096 R 455
SNL 3096 L 23096 CAK/W33 OH 3096 H TS 96 ETS 96 470
TNF 96 543
SNL 3096 LTURT 23096 CAK/W33 OH 3096 H included ETS 3096 R 455
SNL 3196 F 23196 CAK/W33 OH 3196 H TS 96 ETS 96 480
C 3196 KMB OH 3196 HE TNF 96 553
SNL 3196 FTURT 23196 CAK/W33 OH 3196 H included ETS 3196 R 465
SNL 3196 FTURA C 3196 KMB OH 3196 HE included ETS 3196 R 465
SNL 3196 L 23196 CAK/W33 OH 3196 H TS 96 ETS 96 480
TNF 96 553
SNL 3196 LTURT 23196 CAK/W33 OH 3196 H included ETS 3196 R 465

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
