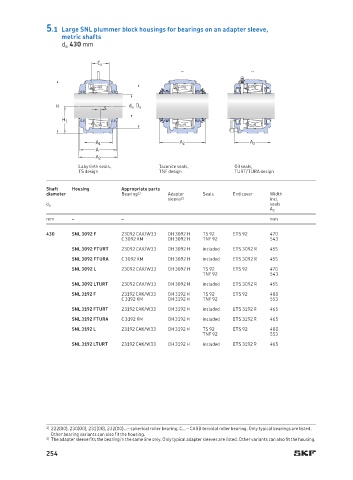

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 430 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
430 SNL 3092 F 23092 CAK/W33 OH 3 092 H TS 92 ETS 92 470
C 3092 KM OH 3092 H TNF 92 543
SNL 3092 FTURT 23092 CAK/W33 OH 3092 H included ETS 3092 R 455
SNL 3092 FTURA C 3092 KM OH 3092 H included ETS 3092 R 455
SNL 3092 L 23092 CAK/W33 OH 3092 H TS 92 ETS 92 470
TNF 92 543
SNL 3092 LTURT 23092 CAK/W33 OH 3092 H included ETS 3092 R 455
SNL 3192 F 23192 CAK/W33 OH 3192 H TS 92 ETS 92 480
C 3192 KM OH 3192 H TNF 92 553
SNL 3192 FTURT 23192 CAK/W33 OH 3192 H included ETS 3192 R 465
SNL 3192 FTURA C 3192 KM OH 3192 H included ETS 3192 R 465
SNL 3192 L 23192 CAK/W33 OH 3192 H TS 92 ETS 92 480
TNF 92 553
SNL 3192 LTURT 23192 CAK/W33 OH 3192 H included ETS 3192 R 465

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
254
