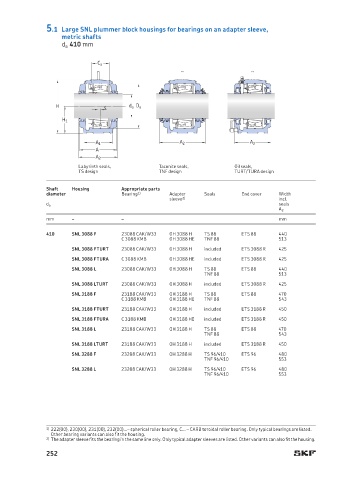

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 410 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
410 SNL 3088 F 23088 CAK/W33 OH 3 088 H TS 88 ETS 88 440
C 3088 KMB OH 3088 HE TNF 88 513
SNL 3088 FTURT 23088 CAK/W33 OH 3088 H included ETS 3088 R 425
SNL 3088 FTURA C 3088 KMB OH 3088 HE included ETS 3088 R 425
SNL 3088 L 23088 CAK/W33 OH 3088 H TS 88 ETS 88 440
TNF 88 513
SNL 3088 LTURT 23088 CAK/W33 OH 3088 H included ETS 3088 R 425
SNL 3188 F 23188 CAK/W33 OH 3188 H TS 88 ETS 88 470
C 3188 KMB OH 3188 HE TNF 88 543
SNL 3188 FTURT 23188 CAK/W33 OH 3188 H included ETS 3188 R 450
SNL 3188 FTURA C 3188 KMB OH 3188 HE included ETS 3188 R 450
SNL 3188 L 23188 CAK/W33 OH 3188 H TS 88 ETS 88 470
TNF 88 543
SNL 3188 LTURT 23188 CAK/W33 OH 3188 H included ETS 3188 R 450
SNL 3288 F 23288 CAK/W33 OH 3288 H TS 96/410 ETS 96 480
TNF 96/410 553
SNL 3288 L 23288 CAK/W33 OH 3288 H TS 96/410 ETS 96 480
TNF 96/410 553

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
252
