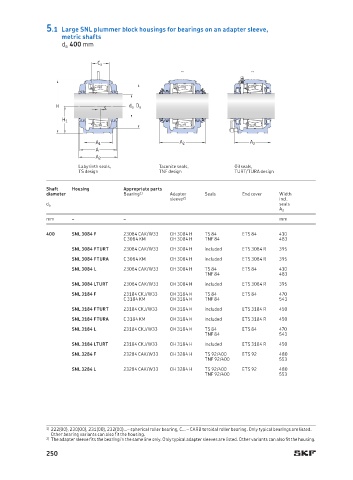

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 400 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
400 SNL 3084 F 23084 CAK/W33 OH 3 084 H TS 84 ETS 84 410
C 3084 KM OH 3084 H TNF 84 483
SNL 3084 FTURT 23084 CAK/W33 OH 3084 H included ETS 3084 R 395
SNL 3084 FTURA C 3084 KM OH 3084 H included ETS 3084 R 395
SNL 3084 L 23084 CAK/W33 OH 3084 H TS 84 ETS 84 410
TNF 84 483
SNL 3084 LTURT 23084 CAK/W33 OH 3084 H included ETS 3084 R 395
SNL 3184 F 23184 CKJ/W33 OH 3184 H TS 84 ETS 84 470
C 3184 KM OH 3184 H TNF 84 543
SNL 3184 FTURT 23184 CKJ/W33 OH 3184 H included ETS 3184 R 450
SNL 3184 FTURA C 3184 KM OH 3184 H included ETS 3184 R 450
SNL 3184 L 23184 CKJ/W33 OH 3184 H TS 84 ETS 84 470
TNF 84 543
SNL 3184 LTURT 23184 CKJ/W33 OH 3184 H included ETS 3184 R 450
SNL 3284 F 23284 CAK/W33 OH 3284 H TS 92/400 ETS 92 480
TNF 92/400 553
SNL 3284 L 23284 CAK/W33 OH 3284 H TS 92/400 ETS 92 480
TNF 92/400 553

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
