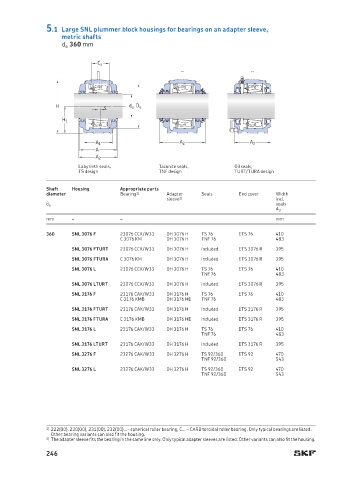

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 360 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
360 SNL 3076 F 23076 CCK/W33 OH 3 076 H TS 76 ETS 76 410
C 3076 KM OH 3076 H TNF 76 483
SNL 3076 FTURT 23076 CCK/W33 OH 3076 H included ETS 3076 R 395
SNL 3076 FTURA C 3076 KM OH 3076 H included ETS 3076 R 395
SNL 3076 L 23076 CCK/W33 OH 3076 H TS 76 ETS 76 410
TNF 76 483
SNL 3076 LTURT 23076 CCK/W33 OH 3076 H included ETS 3076 R 395
SNL 3176 F 23176 CAK/W33 OH 3176 H TS 76 ETS 76 410
C 3176 KMB OH 3176 HE TNF 76 483
SNL 3176 FTURT 23176 CAK/W33 OH 3176 H included ETS 3176 R 395
SNL 3176 FTURA C 3176 KMB OH 3176 HE included ETS 3176 R 395
SNL 3176 L 23176 CAK/W33 OH 3176 H TS 76 ETS 76 410
TNF 76 483
SNL 3176 LTURT 23176 CAK/W33 OH 3176 H included ETS 3176 R 395
SNL 3276 F 23276 CAK/W33 OH 3276 H TS 92/360 ETS 92 470
TNF 92/360 543
SNL 3276 L 23276 CAK/W33 OH 3276 H TS 92/360 ETS 92 470
TNF 92/360 543

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
