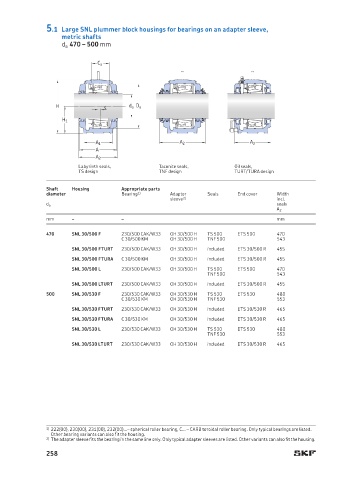

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 470 – 500 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Seals End cover Width
sleeve 2) incl.
seals
d a
A 2
mm – – mm
470 SNL 30/500 F 230/500 CAK/W33 OH 3 0/500 H TS 500 ETS 500 470
C 30/500 KM OH 30/500 H TNF 500 543
SNL 30/500 FTURT 230/500 CAK/W33 OH 30/500 H included ETS 30/500 R 455
SNL 30/500 FTURA C 30/500 KM OH 30/500 H included ETS 30/500 R 455
SNL 30/500 L 230/500 CAK/W33 OH 30/500 H TS 500 ETS 500 470
TNF 500 543
SNL 30/500 LTURT 230/500 CAK/W33 OH 30/500 H included ETS 30/500 R 455
500 SNL 30/530 F 230/530 CAK/W33 OH 30/530 H TS 530 ETS 530 480
C 30/530 KM OH 30/530 H TNF 530 553
SNL 30/530 FTURT 230/530 CAK/W33 OH 30/530 H included ETS 30/530 R 465
SNL 30/530 FTURA C 30/530 KM OH 30/530 H included ETS 30/530 R 465
SNL 30/530 L 230/530 CAK/W33 OH 30/530 H TS 530 ETS 530 480
TNF 530 553
SNL 30/530 LTURT 230/530 CAK/W33 OH 30/530 H included ETS 30/530 R 465

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
