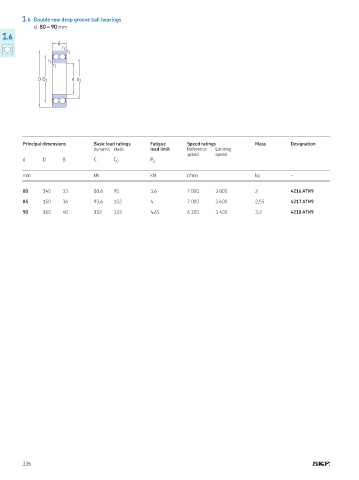

1.6 Double row deep groove ball bearings
d 80 – 90 mm
1.6
B
r 2
r 1
r 1
r 2

D D 1 d d 1

Principal dimensions Basic load ratings Fatigue Speed ratings Mass Designation
dynamic static load limit Reference Limiting
speed speed
d D B C C 0 P u

mm kN kN r/min kg –

80 140 33 80,6 90 3,6 7 000 3 800 2 4216 ATN9

85 150 36 93,6 102 4 7 000 3 600 2,55 4217 ATN9

90 160 40 112 122 4,65 6 300 3 400 3,2 4218 ATN9

336
