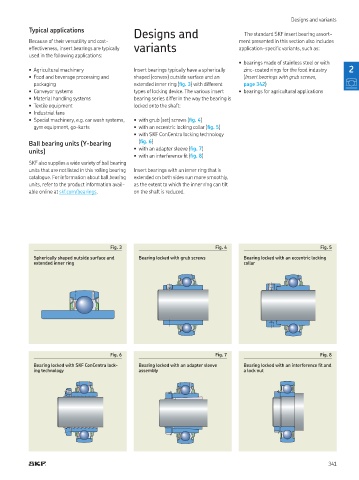

Designs and variants
           Typical applications
                                             Designs and                          The standard SKF insert bearing assort-
           Because of their versatility and cost-                               ment presented in this section also includes
           effectiveness, insert bearings are typically   variants              application-speciic variants, such as:
           used in the following applications:
                                                                                • bearings made of stainless steel or with
           • Agricultural machinery          Insert bearings typically have a spherically   zinc-coated rings for the food industry   2
           • Food and beverage processing and   shaped (convex) outside surface and an   (Insert bearings with grub screws,
            packaging                        extended inner ring (ig. 3) with different   page 342)
           • Conveyor systems                types of locking device  The various insert   • bearings for agricultural applications
           • Material handling systems       bearing series differ in the way the bearing is
           • Textile equipment               locked onto the shaft:
           • Industrial fans
           • Special machinery, e g  car wash systems,   • with grub (set) screws (ig. 4)
            gym equipment, go-karts          • with an eccentric locking collar (ig. 5)
                                             • with SKF ConCentra locking technology
           Ball bearing units (Y-bearing       (ig. 6)
           units)                            • with an adapter sleeve (ig. 7)
                                             • with an interference it (ig. 8)
           SKF also supplies a wide variety of ball bearing
           units that are not listed in this rolling bearing   Insert bearings with an inner ring that is
           catalogue  For information about ball bearing   extended on both sides run more smoothly,
           units, refer to the product information avail-  as the extent to which the inner ring can tilt
           able online at skf com/bearings   on the shaft is reduced.










                                      Fig. 3                            Fig. 4                             Fig. 5
            Spherically shaped outside surface and   Bearing locked with grub screws  Bearing locked with an eccentric locking
            extended inner ring                                                   collar

















                                      Fig. 6                            Fig. 7                             Fig. 8
            Bearing locked with SKF ConCentra lock-  Bearing locked with an adapter sleeve   Bearing locked with an interference it and
            ing technology                     assembly                           a lock nut

















                                                                                                              341
