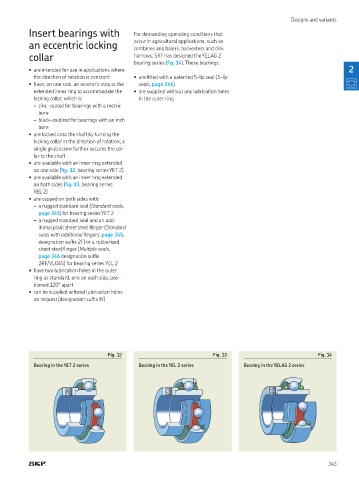

Page 345 - Rollingbearings

Designs and variants
Insert bearings with For demanding operating conditions that
an eccentric locking occur in agricultural applications, such as
combines and balers, harvesters and disk
collar harrows, SKF has designed the YELAG 2
bearing series (ig. 14) These bearings:
• are intended for use in applications where 2
the direction of rotation is constant • are itted with a patented 5-lip seal (5-lip
• have, on one side, an eccentric step at the seals, page 346)
extended inner ring to accommodate the • are supplied without any lubrication holes
locking collar, which is: in the outer ring
– zinc-coated for bearings with a metric
bore
– black-oxidized for bearings with an inch
bore
• are locked onto the shaft by turning the
locking collar in the direction of rotation; a
single grub screw further secures the col-
lar to the shaft
• are available with an inner ring extended
on one side (ig. 12, bearing series YET 2)
• are available with an inner ring extended
on both sides (ig. 13, bearing series
YEL 2)
• are capped on both sides with:
– a rugged standard seal (Standard seals,
page 345) for bearing series YET 2
– a rugged standard seal and an add-
itional plain sheet steel linger (Standard
seals with additional lingers, page 345,
designation sufix 2F) or a rubberized
sheet steel linger (Multiple seals,
page 346 designation sufix
2RF/VL065) for bearing series YEL 2
• have two lubrication holes in the outer
ring as standard, one on each side, pos-
itioned 120° apart
• can be supplied without lubrication holes
on request (designation sufix W)

Fig. 12 Fig. 13 Fig. 14
Bearing in the YET 2 series Bearing in the YEL 2 series Bearing in the YELAG 2 series

343
