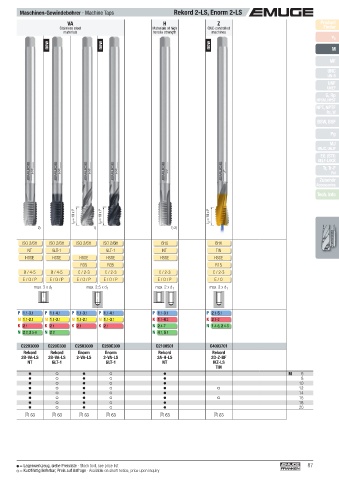

Maschinen-Gewindebohrer · Machine Taps Rekord 2-LS, Enorm 2-LS
STEEL VA H Z Product
60° materials Stainless steel Materials of high CNC-controlled Finder
Steel
P
M new new new v c
machines
tensile strength
materials
DIN 13 M
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF
Rc, W
BSW, BSF

Pg
MJ
UNJC, UNJF
EG (STI)
SELF-LOCK
Tr, Tr-F
Rd
Zubehör
Accessories
Mit extra langem Schaft
With extra long shank Tech. Info

l 1
l 2

ø d 1 ø d 2 2) 1) 1) 2) 1) 1) 2)

Toleranz · Tolerance ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H 6HX 6HX
Beschichtung · Coating TIN NT GLT-1 GLT-1 NT TIN
Technische Informationen  245 - 266 Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Technical information R15 R15 R35 R35 R35 R15
B / 4-5 E / 1,5-2 C / 2-3 C / 2-3 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3 C / 2-3
E / O E / O E / O E / O E / O / P E / O / P E / O / P E / O / P E / O / P E / O
max. 3 x d 1 max. 2 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2,5 x d 1 max. 2 x d 1 max. 2 x d 1
Gewindetiefe und Lochform
Thread depth and hole type

P 2.1- 4.1 P 2.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 2.1- 5.1
K 1.1- 4.2 N 2.2 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 K 1.1- 4.2 K 2.1-2
Einsatzgebiete – Material N 1.4-5, 2.4-5 K 2.1 K 2.1 K 2.1 K 2.1 N 2.4-7 N 1.4-6, 2.4-5
Applications – material  22
N 2.2, 2.5-6 N 2.2 N 4.1, 5.1
Werkzeug-Ident · Tool ident C2201000 C2461000 C2401400 C2501000 C2203000 C220C300 C2503000 C250C300 C2100501 C4093701
Rekord Rekord Rekord Enorm Rekord Rekord Enorm Enorm Rekord Rekord
Dimens.- 2B-STEEL-M 2D-STEEL/E 2DF-STEEL 2-STEEL-LS 2B-VA-LS 2B-VA-LS 2-VA-LS 2-VA-LS 2A-H-LS 2D-Z-BF
ø d 1 P Ident LS LS LS-TIN NT GLT-1 GLT-1 NT IKZ-LS
mm mm l 1 l 2 ø d 2 TIN
M 6 1 160 17 4,5 3,4 5 .0060 M 6
8 1,25 180 20 6 4,9 6,8 .0080 8
10 1,5 200 22 7 5,5 8,5 .0100 10
12 1,75 224 24 9 7 10,2 .0112 12
14 2 224 26 11 9 12 .0114 14
16 2 224 27 12 9 14 .0116 16
18 2,5 250 30 14 11 15,5 .0118 18
20 2,5 280 32 16 12 17,5 .0120 20
 62  62  62  62  63  63  63  63  63  63

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 87
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
