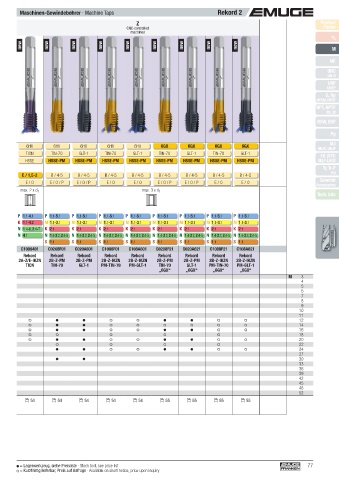

P. 77
Maschinen-Gewindebohrer · Machine Taps Rekord 2
Z Z Product
60° DIN CNC-controlled CNC-controlled Finder
P
M 376 new new new new new new new new new v c
machines
machines
DIN 13 M
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF
l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
Toleranz · Tolerance 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6GX 6GX 6GX 6GX MJ
UNJC, UNJF
Beschichtung · Coating TICN TICN TICN TICN TICN TICN TIN-70 GLT-1 TIN-70 GLT-1 TIN-70 GLT-1 TIN-70 GLT-1
EG (STI)
Technische Informationen 245 - 266 Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM SELF-LOCK
Technical information Tr, Tr-F
Rd
C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 B / 4-5 B / 4-5 B / 4-5 B / 4-5 B / 4-5 B / 4-5 B / 4-5 B / 4-5 Zubehör
E / O / P E / O E / O E / O / P E / O E / O E / O / P E / O / P E / O E / O E / O / P E / O / P E / O E / O Accessories
max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 3 x d 1
Gewindetiefe und Lochform Tech. Info
Thread depth and hole type
1) 1)
P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1
K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material N 1.4-6, 2.4-7 N 1.4-6, 2.4-7 N 1.4-6, 2.4-7 N 1.4-6, 2.4-7 N 1.4-6, 2.4-7 N 1.4-6, 2.4-7 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1
Applications – material 22
N 4.1 N 4.1 N 4.1 N 4.1 N 4.1 N 4.1 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5
S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C0109401 C1959401 C1069401 C0119401 C1969401 C1099401 C0208F01 C020A601 C1088F01 C108A601 C0208F21 C020A621 C1088F21 C108A621
Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord
Dimens.- 2A-Z 2A-Z-IKZ 2A-Z-IKZN 2A-Z/E 2A-Z/E-IKZ 2A-Z/E-IKZN 2B-Z-PM 2B-Z-PM 2B-Z-IKZN 2B-Z-IKZN 2B-Z-PM 2B-Z-PM 2B-Z-IKZN 2B-Z-IKZN
ø d 1 P Ident TICN TICN TICN TICN TICN TICN TIN-70 GLT-1 PM-TIN-70 PM-GLT-1 TIN-70 GLT-1 PM-TIN-70 PM-GLT-1
mm mm l 1 l 2 ø d 2 „6GX“ „6GX“ „6GX“ „6GX“
M 3 0,5 56 6 2,2 – 2,5 .0030 M 3
4 0,7 63 7 2,8 2,1 3,3 .0040 4
5 0,8 70 8 3,5 2,7 4,2 .0050 5
6 1 80 10 4,5 3,4 5 .0060 6
7 1 80 10 5,5 4,3 6 .0070 7
8 1,25 90 14 6 4,9 6,8 .0080 8
9 1,25 90 14 7 5,5 7,8 .0090 9
10 1,5 100 16 7 5,5 8,5 .0100 10
11 1,5 100 18 8 6,2 9,5 .0111 11
12 1,75 110 18 9 7 10,2 .0112 12
14 2 110 20 11 9 12 .0114 14
16 2 110 22 12 9 14 .0116 16
18 2,5 125 25 14 11 15,5 .0118 18
20 2,5 140 25 16 12 17,5 .0120 20
22 2,5 140 27 18 14,5 19,5 .0122 22
24 3 160 30 18 14,5 21 .0124 24
27 3 160 30 20 16 24 .0127 27
30 3,5 180 35 22 18 26,5 .0130 30
33 3,5 180 35 25 20 29,5 .0133 33
36 4 200 40 28 22 32 .0136 36
39 4 200 40 32 24 35 .0139 39
42 4,5 200 45 32 24 37,5 .0142 42
45 4,5 220 45 36 29 40,5 .0145 45
48 5 250 50 36 29 43 .0148 48
52 5 250 50 40 32 47 .0152 52
DIN 371 53 53 53 53 53 54 54 54 54 54 55 55 55 55
DIN 352
= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 77
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
