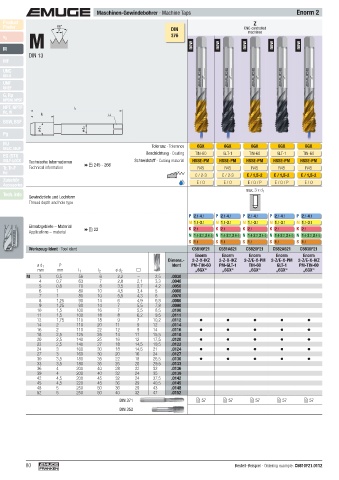

P. 80
Maschinen-Gewindebohrer · Machine Taps Enorm 2
Product Z Z
Finder 60° DIN CNC-controlled CNC-controlled
M
P
machines
machines
v c 376
M new new new new new
DIN 13
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 6GX 6GX 6GX 6GX 6GX 6GX ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 3/6G
Beschichtung · Coating TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1 TIN GLT-1 GLT-1 TIN GLT-1 TIN
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information 245 - 266 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45
Rd
C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2
Zubehör E / O E / O E / O / P E / O / P E / O E / O E / O / P E / O / P E / O / P E / O E / O / P E / O / P E / O / P E / O E / O / P
Accessories
max. 3 x d 1 max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1
M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1
Einsatzgebiete – Material 22 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 N 2.1 N 1.4-6 N 1.4-6 N 1.4-6 N 2.1 N 1.4-6 N 1.4-6 N 1.4-6 N 2.1
Applications – material
N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5
S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C5810F21 C581A621 C5820F21 C582A621 C5830F21 C583A621 C0503500 C0503700 C050C400 C099C400 C0513500 C0513700 C051C400 C0973700 C0513520
Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm
Dimens.- 2-Z-X-IKZ 2-Z-X-IKZ 2-Z/E-X-PM 2-Z/E-X-PM 2-Z/E-X-IKZ 2-Z/E-X-IKZ 2-Z 2-Z 2-Z 2-Z-IKZ 2-Z/E 2-Z/E 2-Z/E 2-Z/E-IKZ 2-Z/E
ø d 1 P Ident PM-TIN-60 PM-GLT-1 TIN-60 GLT-1 PM-TIN-60 PM-GLT-1 TIN GLT-1 GLT-1 TIN GLT-1 TIN
mm mm l 1 l 2 ø d 2 „6GX“ „6GX“ „6GX“ „6GX“ „6GX“ „6GX“ „6G“
M 3 0,5 56 6 2,2 – 2,5 .0030 M 3
4 0,7 63 7 2,8 2,1 3,3 .0040 4
5 0,8 70 8 3,5 2,7 4,2 .0050 5
6 1 80 10 4,5 3,4 5 .0060 6
7 1 80 10 5,5 4,3 6 .0070 7
8 1,25 90 14 6 4,9 6,8 .0080 8
9 1,25 90 14 7 5,5 7,8 .0090 9
10 1,5 100 16 7 5,5 8,5 .0100 10
11 1,5 100 18 8 6,2 9,5 .0111 11
12 1,75 110 18 9 7 10,2 .0112 12
14 2 110 20 11 9 12 .0114 14
16 2 110 22 12 9 14 .0116 16
18 2,5 125 25 14 11 15,5 .0118 18
20 2,5 140 25 16 12 17,5 .0120 20
22 2,5 140 27 18 14,5 19,5 .0122 22
24 3 160 30 18 14,5 21 .0124 24
27 3 160 30 20 16 24 .0127 27
30 3,5 180 35 22 18 26,5 .0130 30
33 3,5 180 35 25 20 29,5 .0133 33
36 4 200 40 28 22 32 .0136 36
39 4 200 40 32 24 35 .0139 39
42 4,5 200 45 32 24 37,5 .0142 42
45 4,5 220 45 36 29 40,5 .0145 45
48 5 250 50 36 29 43 .0148 48
52 5 250 50 40 32 47 .0152 52
DIN 371 57 57 57 57 57 58 58 58 58 58 59 59 59 59 59
DIN 352 91
80 Bestell-Beispiel · Ordering example: C5810F21.0112
