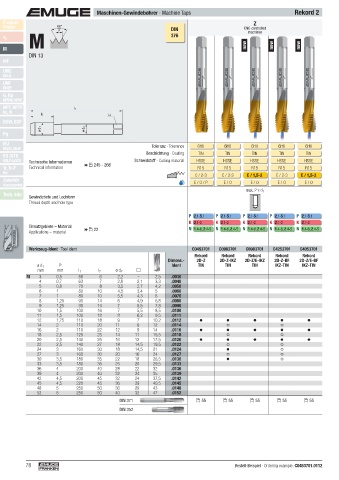

Page 78 - EMUGE
P. 78
Maschinen-Gewindebohrer · Machine Taps Rekord 2
Product Z Z
Finder 60° DIN CNC-controlled CNC-controlled
M
P
machines
machines
v c 376
M new new new
DIN 13
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6GX 6GX
Beschichtung · Coating TIN TIN TIN TIN TIN TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1 TIN-60 GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Tr, Tr-F Technical information 245 - 266 R15 R15 R15 R15 R15 R45 R45 R45 R45 R45 R45 R45 R45 R45 R45
Rd
C / 2-3 C / 2-3 E / 1,5-2 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 C / 2-3 C / 2-3
Zubehör E / O / P E / O E / O E / O E / O E / O / P E / O / P E / O E / O E / O / P E / O / P E / O E / O E / O / P E / O / P
Accessories
max. 2 x d 1 max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 2.1- 5.1 P 2.1- 5.1 P 2.1- 5.1 P 2.1- 5.1 P 2.1- 5.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1
K 2.1-2 K 2.1-2 K 2.1-2 K 2.1-2 K 2.1-2 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material N 1.4-6, 2.4-5 N 1.4-6, 2.4-5 N 1.4-6, 2.4-5 N 1.4-6, 2.4-5 N 1.4-6, 2.4-5 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1
Applications – material 22
N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5
S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C0453701 C0963701 C0983701 C4253701 C4053701 C5760F01 C576A601 C5810F01 C581A601 C5820F01 C582A601 C5830F01 C583A601 C5760F21 C576A621
Rekord Rekord Rekord Rekord Rekord Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm Enorm
Dimens.- 2D-Z 2D-Z-IKZ 2D-Z/E-IKZ 2D-Z-BF 2D-Z/E-BF 2-Z-X-PM 2-Z-X-PM 2-Z-X 2-Z-X 2-Z/E-X-PM 2-Z/E-X-PM 2-Z/E-X 2-Z/E-X 2-Z-X-PM 2-Z-X-PM
ø d 1 P Ident TIN TIN TIN IKZ-TIN IKZ-TIN TIN-60 GLT-1 IKZ-PM IKZ-PM TIN-60 GLT-1 IKZ-PM IKZ-PM TIN-60 GLT-1
mm mm l 1 l 2 ø d 2 TIN-60 GLT-1 TIN-60 GLT-1 „6GX“ „6GX“
M 3 0,5 56 6 2,2 – 2,5 .0030 M 3
4 0,7 63 7 2,8 2,1 3,3 .0040 4
5 0,8 70 8 3,5 2,7 4,2 .0050 5
6 1 80 10 4,5 3,4 5 .0060 6
7 1 80 10 5,5 4,3 6 .0070 7
8 1,25 90 14 6 4,9 6,8 .0080 8
9 1,25 90 14 7 5,5 7,8 .0090 9
10 1,5 100 16 7 5,5 8,5 .0100 10
11 1,5 100 18 8 6,2 9,5 .0111 11
12 1,75 110 18 9 7 10,2 .0112 12
14 2 110 20 11 9 12 .0114 14
16 2 110 22 12 9 14 .0116 16
18 2,5 125 25 14 11 15,5 .0118 18
20 2,5 140 25 16 12 17,5 .0120 20
22 2,5 140 27 18 14,5 19,5 .0122 22
24 3 160 30 18 14,5 21 .0124 24
27 3 160 30 20 16 24 .0127 27
30 3,5 180 35 22 18 26,5 .0130 30
33 3,5 180 35 25 20 29,5 .0133 33
36 4 200 40 28 22 32 .0136 36
39 4 200 40 32 24 35 .0139 39
42 4,5 200 45 32 24 37,5 .0142 42
45 4,5 220 45 36 29 40,5 .0145 45
48 5 250 50 36 29 43 .0148 48
52 5 250 50 40 32 47 .0152 52
DIN 371 55 55 55 55 55 56 56 56 56 56 57 57 57 57 57
DIN 352
78 Bestell-Beispiel · Ordering example: C0453701.0112
