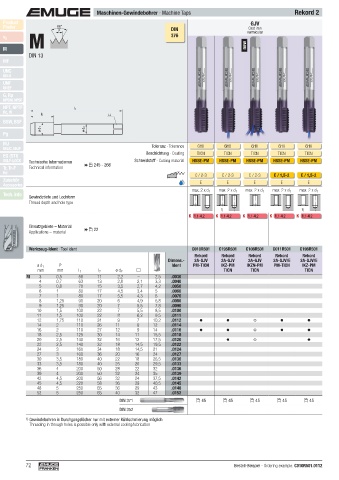

P. 72
Maschinen-Gewindebohrer · Machine Taps Rekord 2
Product GJV GJV AL TI
Finder 60° DIN vermicular vermicular wrought alloys Titanium
Cast iron
Aluminium
Cast iron
M
P
v c 376
M new
DIN 13
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 6HX 6HX 6HX 6HX 6HX 6HX ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H 6HX 6HX 6HX
Beschichtung · Coating TICN TICN TICN TICN TICN TICN GLT-8 GLT-8 NT2 TICN NT2
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information 245 - 266 R35 R35 L15 L15 R15
Rd
C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 E / 1,5-2 B / ≈3 B / ≈3 C / 2-3 C / 2-3 D / 4-5 D / 4-5 C / 2-3
Zubehör E E E E E E E / O E / O E / O E / O E / O / P E / O / P E / O / P
Accessories
max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 3 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
1) 1)
K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 N 1.1-4 N 1.1-4 N 1.1-4 N 1.1-4 P 4.1- 5.1 P 4.1- 5.1 P 4.1- 5.1
M 3.1- 4.1 M 3.1- 4.1 M 3.1- 4.1
Einsatzgebiete – Material N 2.4-5, 2.7 N 2.4-5, 2.7 N 2.4-5, 2.7
Applications – material 22
S 1.1- 2.2, 2.4 S 1.1- 2.2, 2.4 S 1.1- 2.2, 2.4
Werkzeug-Ident · Tool ident C010R501 C195R501 C106R501 C011R501 C196R501 C109R501 C0204500 C020S800 C0504500 C050S800 C0306001 C0309601 C0456001
Rekord Rekord Rekord Rekord Rekord Rekord Rekord Rekord Enorm Enorm Rekord Rekord Rekord
Dimens.- 2A-GJV 2A-GJV 2A-GJV 2A-GJV/E 2A-GJV/E 2A-GJV/E 2B-AL 2B-AL 2-AL 2-AL 2C-TI 2C-TI 2D-TI
ø d 1 P Ident PM-TICN IKZ-PM IKZN-PM PM-TICN IKZ-PM IKZN-PM GLT-8 GLT-8 NT2 TICN NT2
mm mm l 1 l 2 ø d 2 TICN TICN TICN TICN
M 3 0,5 56 11 2,2 – 2,5 .0030 M 3
4 0,7 63 13 2,8 2,1 3,3 .0040 4
5 0,8 70 15 3,5 2,7 4,2 .0050 5
6 1 80 17 4,5 3,4 5 .0060 6
7 1 80 17 5,5 4,3 6 .0070 7
8 1,25 90 20 6 4,9 6,8 .0080 8
9 1,25 90 20 7 5,5 7,8 .0090 9
10 1,5 100 22 7 5,5 8,5 .0100 10
11 1,5 100 22 8 6,2 9,5 .0111 11
12 1,75 110 24 9 7 10,2 .0112 12
14 2 110 26 11 9 12 .0114 14
16 2 110 27 12 9 14 .0116 16
18 2,5 125 30 14 11 15,5 .0118 18
20 2,5 140 32 16 12 17,5 .0120 20
22 2,5 140 32 18 14,5 19,5 .0122 22
24 3 160 34 18 14,5 21 .0124 24
27 3 160 36 20 16 24 .0127 27
30 3,5 180 40 22 18 26,5 .0130 30
33 3,5 180 40 25 20 29,5 .0133 33
36 4 200 50 28 22 32 .0136 36
39 4 200 50 32 24 35 .0139 39
42 4,5 200 56 32 24 37,5 .0142 42
45 4,5 220 58 36 29 40,5 .0145 45
48 5 250 65 36 29 43 .0148 48
52 5 250 65 40 32 47 .0152 52
DIN 371 45 45 45 45 45 45 46 46 46 46 48 49 49
DIN 352
1) Gewindebohren in Durchgangslöcher nur mit externer Kühlschmierung möglich
Threading in through holes is possible only with external cooling/lubrication
72 Bestell-Beispiel · Ordering example: C010R501.0112
