Gewindelehren · Thread Gauges
  Product

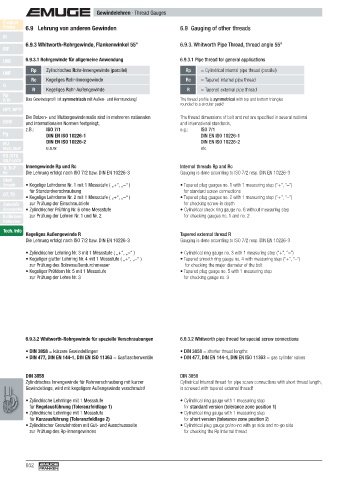

  Finder  6.9  Lehrung von anderen Gewinden                     6.9  Gauging of other threads

  M
          6.9.3 Whitworth-Rohrgewinde, Flankenwinkel 55°        6.9.3. Whitworth Pipe Thread, thread angle 55°
  MF

  UNC     6.9.3.1 Rohrgewinde für allgemeine Anwendung          6.9.3.1 Pipe thread for general applications
            Rp    Zylindrisches Rohr-Innengewinde (parallel)      Rp    = Cylindrical internal pipe thread (parallel)
  UNF
            Rc    Kegeliges Rohr-Innengewinde                     Rc    = Tapered internal pipe thread
  G
            R     Kegeliges Rohr-Außengewinde                      R    = Tapered external pipe thread
  Rp
    R, Rc  Das Gewindeprofi l ist symmetrisch mit Außen- und Kernrundung!  The thread profi le is symmetrical with top and bottom triangles
                                                                rounded to a circular peak!
  NPT, NPTF
          Die Bolzen- und Muttergewindemaße sind in mehreren nationalen   The thread dimensions of bolt and nut are specifi ed in several national
  BSW     und internationalen Normen festgelegt,                and international standards,
          z.B.:   ISO 7/1                                       e.g.:   ISO 7/1
  Pg             DIN EN ISO 10226-1                                     DIN EN ISO 10226-1
  MJ             DIN EN ISO 10226-2                                     DIN EN ISO 10226-2
    UNJC, UNJF   u.s.w.                                                 etc.
  EG (STI)
    SELF-LOCK
  Tr, Tr-F  Innengewinde Rp und Rc                              Internal threads Rp and Rc
    Rd    Die Lehrung erfolgt nach ISO 7/2 bzw. DIN EN 10226-3  Gauging is done according to ISO 7/2 resp. DIN EN 10226-3
  Glatt
    Smooth  •   Kegelige Lehrdorne Nr. 1 mit 1 Messstufe ( „+“, „–“ )   •   Tapered plug gauges no. 1 with 1 measuring step (“+”, “–”)
           für Standardverschraubung                              for standard screw connections
  GT, TD
          •  Kegelige Lehrdorne Nr. 2 mit 1 Messstufe ( „+“, „–“ )  •  Tapered plug gauges no. 2 with 1 measuring step (“+”, “–”)
  Zubehör  zur Prüfung der Einschraubtiefe                        for checking screw-in depth
    Accessories •  Zylindrischer Prüfring Nr. 6 ohne Messstufe   •   Cylindrical check ring gauge no. 6 without measuring step
  Kalibrieren  zur Prüfung der Lehren Nr. 1 und Nr. 2             for checking gauges no. 1 and no. 2
    Calibration
  Tech. Info
          Kegeliges Außengewinde R                              Tapered external thread R
          Die Lehrung erfolgt nach ISO 7/2 bzw. DIN EN 10226-3  Gauging is done according to ISO 7/2 resp. DIN EN 10226-3

          • Zylindrischer Lehrring Nr. 3 mit 1 Messstufe ( „+“, „–“ )  • Cylindrical ring gauge no. 3 with 1 measuring step (“+”, “–”)
          •  Kegeliger glatter Lehrring Nr. 4 mit 1 Messstufe ( „+“, „–“ )   •  Tapered smooth ring gauge no. 4 with measuring step (“+”, “–”)
           zur Prüfung des Bolzenaußendurchmesser                  for checking the major diameter of the bolt
          •  Kegeliger Prüfdorn Nr. 5 mit 1 Messstufe           •  Tapered plug gauge no. 5 with 1 measuring step
           zur Prüfung der Lehre Nr. 3                            for checking gauge no. 3












          6.9.3.2 Whitworth-Rohrgewinde für spezielle Verschraubungen  6.9.3.2 Whitworth pipe thread for special screw connections
          • DIN 3858 = kürzere Gewindelängen                    • DIN 3858 = shorter thread lengths
          •  DIN 477, DIN EN 144-1, DIN EN ISO 11363 = Gasfl aschenventile  • DIN 477, DIN EN 144-1, DIN EN ISO 11363 = gas cylinder valves


          DIN 3858                                              DIN 3858
          Zylindrisches Innengewinde für Rohrverschraubung mit kurzer   Cylindrical internal thread for pipe screw connections with short thread length,
          Gewindelänge, wird mit kegeligem Außengewinde verschraubt!  is screwed with tapered external thread!

          •  Zylindrische Lehrringe mit 1 Messstufe             •  Cylindrical ring gauge with 1 measuring step
           für Regelausführung (Toleranzfeldlage 1)               for standard version (tolerance zone position 1)
          •  Zylindrische Lehrringe mit 1 Messstufe             •  Cylindrical ring gauge with 1 measuring step
           für Kurzausführung (Toleranzfeldlage 2)                for short version (tolerance zone position 2)
          •  Zylindrischer Grenzlehrdorn mit Gut- und Ausschussseite   •  Cylindrical plug gauge go/no-no with go side and no-go side
           zur Prüfung des Rp-Innengewindes                       for checking the Rp internal thread
