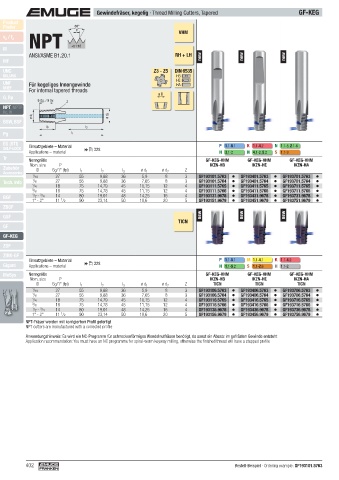

Gewindefräser, kegelig · Thread Milling Cutters, Tapered GF-KEG
Product
Finder 60°
P
NPT
v / f VHM
c
z
M 1:16
ANSI/ASME B1.20.1 RH + LH new new new
MF
UNC Z3 - Z5 DIN 6535
UN, UNS HB
HE
UNF Für kegeliges Innengewinde HA
UNEF For internal tapered threads
G, Rp ø D
9 Gg. / 9 thr. Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM
Nom. size P IKZN-HB IKZN-HE IKZN-HA
Zubehör D Gg/1" (tpi) l l ø d ø d Z
Accessories l 1 2 3 1 2
1 /16 27 55 9,88 36 5,9 8 3 GF193101.5763 GF193401.5763 GF193701.5763
Tech. Info 1 /8 27 55 9,88 36 7,65 8 3 GF193101.5764 GF193401.5764 GF193701.5764
1
/4 18 75 14,79 45 10,15 12 4 GF193111.5765 GF193411.5765 GF193711.5765
3 /8 18 75 14,78 45 11,15 12 4 GF193111.5766 GF193411.5766 GF193711.5766
1 3 14 80 19,01 48 14,25 16 4
BGF /2 - /4 GF193131.9678 GF193431.9678 GF193731.9678
1
1" - 2" 11 /2 90 23,14 50 19,6 20 5 GF193151.9679 GF193451.9679 GF193751.9679
ZBGF
GSF new new new
TICN
GF
GF-KEG
ZGF
ZIRK-GF
Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Gigant Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
MoSys Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM
Nom. size P IKZN-HB IKZN-HE IKZN-HA
D Gg/1" (tpi) l 1 l 2 l 3 ø d 1 ø d 2 Z TICN TICN TICN
1
/16 27 55 9,88 36 5,9 8 3 GF193106.5763 GF193406.5763 GF193706.5763
1 /8 27 55 9,88 36 7,65 8 3 GF193106.5764 GF193406.5764 GF193706.5764
1 /4 18 75 14,79 45 10,15 12 4 GF193116.5765 GF193416.5765 GF193716.5765
3 /8 18 75 14,78 45 11,15 12 4 GF193116.5766 GF193416.5766 GF193716.5766
1 /2 - /4 14 80 19,01 48 14,25 16 4 GF193136.9678 GF193436.9678 GF193736.9678
3
1
1" - 2" 11 /2 90 23,14 50 19,6 20 5 GF193156.9679 GF193456.9679 GF193756.9679
NPT-Fräser werden mit korrigiertem Profi l gefertigt
NPT cutters are manufactured with a corrected profi le
Anwendungshinweis: Es wird ein NC-Programm für schneckenförmiges Wendelnutfräsen benötigt, da sonst ein Absatz im gefrästen Gewinde entsteht
Application recommendation: You must have an NC programme for spiral-worm keyway milling, otherwise the fi nished thread will have a stepped profi le

402 Bestell-Beispiel · Ordering example: GF193101.5763
