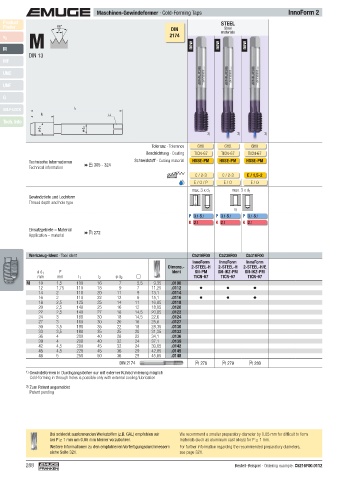

P. 288
Maschinen-Gewindeformer · Cold-Forming Taps InnoForm 2
Product STEEL H Z
Finder 60° DIN materials Materials of high CNC-controlled
Steel
M
P
machines
tensile strength
v c 2174
M new new new
DIN 13
MF
UNC
UNF
G
SELF-LOCK l 1
l 2
Tech. Info
ø d 1 ø d 2
3) 3) 3)
Toleranz · Tolerance 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX
Beschichtung · Coating TICN-67 TICN-67 TICN-67 TIN-T26 TIN-T26 TIN-80 TIN-80 TIN-80 TIN-80 TIN-80 TIN-80
Technische Informationen 305 - 324 Schneidstoff · Cutting material HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Technical information
C / 2-3 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2
E / O / P E / O E / O E / O E E / O / P E / O / P E / O E / O E / O / P E / O
max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1
Gewindetiefe und Lochform
Thread depth and hole type
1) 1) 1) 1)
P 3.1- 5.1 P 3.1- 5.1 P 3.1- 5.1 P 2.1- 5.1 P 2.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1
K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 M 1.1- 3.1 2) M 1.1- 3.1 2) M 1.1- 3.1 2) M 1.1- 3.1 2) M 1.1- 3.1 2) M 1.1- 3.1 2)
Einsatzgebiete – Material 272 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1
Application – material N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5
S 1.1- 2.2 2) S 1.1- 2.2 2) S 1.1- 2.2 2) S 1.1- 2.2 2) S 1.1- 2.2 2) S 1.1- 2.2 2)
S 2.4 2) S 2.4 2) S 2.4 2) S 2.4 2) S 2.4 2) S 2.4 2)
Werkzeug-Ident · Tool ident C5216F00 C5236F00 C5316F00 C521W700 C523W700 C519Z700 C521Z700 C523Z700 C526Z700 C529Z700 C531Z700
InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm
Dimens.- 2-STEEL-H 2-STEEL-H 2-STEEL-H/E 2-H-SN-PM 2-H-SN-IKZ 2-Z-PM 2-Z-SN-PM 2-Z-SN-IKZ 2-Z-SN-IKZN 2-Z/E-SN 2-Z/E-SN-IKZ
ø d 1 P Ident SN-PM SN-IKZ-PM SN-IKZ-PM TIN-T26 PM-TIN-T26 TIN-80 TIN-80 PM-TIN-80 PM-TIN-80 PM-TIN-80 PM-TIN-80
mm mm l 1 l 2 ø d 2 TICN-67 TICN-67 TICN-67
M 10 1,5 100 16 7 5,5 9,35 .0100 M 10
12 1,75 110 18 9 7 11,25 .0112 12
14 2 110 20 11 9 13,1 .0114 14
16 2 110 22 12 9 15,1 .0116 16
18 2,5 125 25 14 11 16,85 .0118 18
20 2,5 140 25 16 12 18,85 .0120 20
22 2,5 140 27 18 14,5 20,85 .0122 22
24 3 160 30 18 14,5 22,6 .0124 24
27 3 160 30 20 16 25,6 .0127 27
30 3,5 180 35 22 18 28,35 .0130 30
33 3,5 180 35 25 20 31,35 .0133 33
36 4 200 40 28 22 34,1 .0136 36
39 4 200 40 32 24 37,1 .0139 39
42 4,5 200 45 32 24 39,85 .0142 42
45 4,5 220 45 36 29 42,85 .0145 45
48 5 250 50 36 29 45,65 .0148 48
DIN 2174 279 279 280 283 283 283 283 283 283 283 283
1) Gewindeformen in Durchgangslöcher nur mit externer Kühlschmierung möglich
Cold-forming in through holes is possible only with external cooling/lubrication
3) Zum Patent angemeldet
Patent pending
Bei schlecht ausformenden Werkstoffen (z.B. GAL) empfehlen wir We recommend a smaller preparatory diameter by 0.05 mm for diffi cult to form
bei P ≥ 1 mm um 0,05 mm kleiner vorzubohren. materials (such as aluminium cast alloys) for P ≥ 1 mm.
Weitere Informationen zu den empfohlenen Vorfertigungsdurchmessern For further information regarding the recommended preparatory diameters,
siehe Seite 321. see page 321.
288 Bestell-Beispiel · Ordering example: C5216F00.0112
