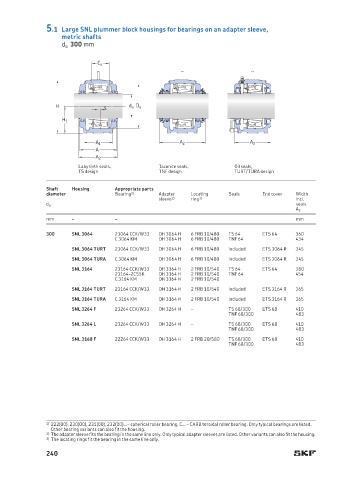

5.1 Large SNL plummer block housings for bearings on an adapter sleeve,
metric shafts
d a 300 mm

C a

H s d a D a
H 1

A 1 A 2 A 2
A
A 2
Labyrinth seals, Taconite seals, Oil seals,
TS design TNF design TURT/TURA design

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
mm – – mm
300 SNL 3064 23064 CCK/W33 OH 3 064 H 6 FRB 10/480 TS 64 ETS 64 360
C 3064 KM OH 3064 H 6 FRB 10/480 TNF 64 434
SNL 3064 TURT 23064 CCK/W33 OH 3064 H 6 FRB 10/480 included ETS 3064 R 345
SNL 3064 TURA C 3064 KM OH 3064 H 6 FRB 10/480 included ETS 3064 R 345
SNL 3164 23164 CCK/W33 OH 3164 H 2 FRB 10/540 TS 64 ETS 64 380
23164-2CS5K OH 3164 H 2 FRB 10/540 TNF 64 454
C 3164 KM OH 3164 H 2 FRB 10/540
SNL 3164 TURT 23164 CCK/W33 OH 3164 H 2 FRB 10/540 included ETS 3164 R 365
SNL 3164 TURA C 3164 KM OH 3164 H 2 FRB 10/540 included ETS 3164 R 365
SNL 3264 F 23264 CCK/W33 OH 3264 H – TS 68/300 ETS 68 410
TNF 68/300 483
SNL 3264 L 23264 CCK/W33 OH 3264 H – TS 68/300 ETS 68 410
TNF 68/300 483
SNL 3168 F 22264 CCK/W33 OH 3164 H 2 FRB 20/580 TS 68/300 ETS 68 410
TNF 68/300 483

1) 222(00), 230(00), 231(00), 232(00)…– spherical roller bearing, C… – CARB toroidal roller bearing. Only typical bearings are listed.
Other bearing variants can also fit the housing.
2) The adapter sleeve fits the bearing in the same line only. Only typical adapter sleeves are listed. Other variants can also fit the housing.
3) The locating rings fit the bearing in the same line only.
240
