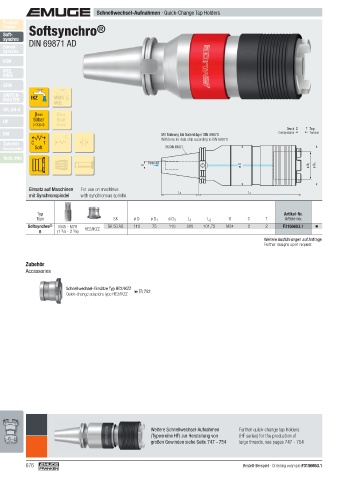

P. 676
Schnellwechsel-Aufnahmen · Quick-Change Tap Holders
Product
Finder Softsynchro ®
Soft-
synchro
Speed- DIN 69871 AD
synchro
KSN
MQL
MMS
SFM
SWITCH-
MASTER IKZ MMS
MQL
GR, GR-S
pmax pmax
50bar 6bar
HF
(700psi) (85psi)
Druck C T Zug
EM Mit Bohrung für Datenträger DIN 69873 Compression Tension
F With bore for data chip according to DIN 69873
Zubehör C T
Accessories Soft SK DIN 69871
Tech. Info
Form AD
G ø D ø D 1 ø D 3
Einsatz auf Maschinen For use on machines
mit Synchronspindel with synchronous spindle L 2 L 1
Typ Artikel-Nr.
Type SK ø D ø D 1 ø D 3 L 1 L 2 G C T Article no.
Softsynchro ® M45 - M76 HE2/IKZZ SK 50 AD 110 75 110 280 101,75 M24 2 2 F3156653.1
6 (1 3 /8 - 2 3 /8)
Weitere Ausführungen auf Anfrage
Further designs upon request
Zubehör
Accessories
Schnellwechsel-Einsätze Typ HE2/IKZZ 752
Quick-change adapters type HE2/IKZZ
Weitere Schnellwechsel-Aufnahmen Further quick-change tap holders
(Typenreihe HF) zur Herstellung von (HF series) for the production of
großen Gewinden siehe Seite 747 - 754 large threads, see pages 747 - 754
676 Bestell-Beispiel · Ordering example:F3156653.1
