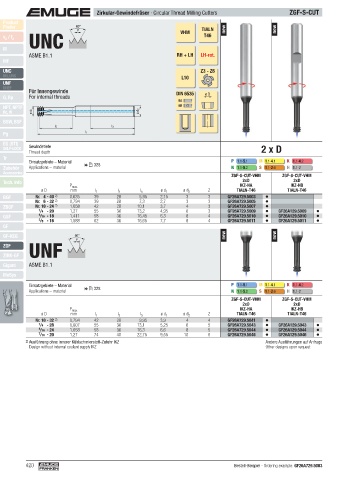

Page 420 - EMUGE

Zirkular-Gewindefräser · Circular Thread Milling Cutters ZGF-S-CUT
Product
Finder 60° TIALN new new
P
UNC
v / f VHM T46
z
c
M
ASME B1.1 RH + LH LH-rot.
MF
UNC Z3 - Z6
UN, UNS
L10
UNF
UNEF
Für Innengewinde
G, Rp For internal threads DIN 6535 ø D
HA
NPT, NPTF HB
Rc, W ø d1 ø d2
BSW, BSF
l 5 l 3
Pg l 1
EG (STI)
SELF-LOCK Gewindetiefe 2 x D
Thread depth
Tr
Einsatzgebiete – Material  328 P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Zubehör Applications – material N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
Accessories
ZGF-S-CUT-VHM ZGF-S-CUT-VHM
Tech. Info 2xD 2xD
P max. IKZ-HA IKZ-HB
ø D mm l 1 l 3 l 5 ø d 1 ø d 2 Z TIALN-T46 TIALN-T46
BGF Nr. 4 - 40 2) 0,635 39 28 5,95 2,15 3 3 GF26A729.5003
Nr. 6 - 32 2) 0,794 39 28 7,3 2,7 3 3 GF26A729.5005
ZBGF Nr. 10 - 24 2) 1,058 42 28 10,1 3,7 4 3 GF26A729.5007
1 /4 - 20 1,27 55 36 13,2 4,95 6 3 GF26A729.5009 GF26A129.5009
GSF 5 /16 - 18 1,411 58 36 16,45 6,3 8 4 GF26A729.5010 GF26A129.5010
3 /8 - 16 1,588 62 36 16,65 7,7 8 4 GF26A729.5011 GF26A129.5011
GF
GF-KEG 60° new new
P
ZIRK-GF UNF
ZGF

Gigant ASME B1.1
MoSys
Einsatzgebiete – Material  328 P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
ZGF-S-CUT-VHM ZGF-S-CUT-VHM
2xD 2xD
P max. IKZ-HA IKZ-HB
ø D mm l 1 l 3 l 5 ø d 1 ø d 2 Z TIALN-T46 TIALN-T46
Nr. 10 - 32 2) 0,794 42 28 9,95 3,9 4 4 GF26A729.5041
1
/4 - 28 0,907 55 36 13,1 5,25 6 5 GF26A729.5043 GF26A129.5043
/16 - 24 1,058 58 36 16,3 6,6 8 5 GF26A729.5044 GF26A129.5044
5
7
/16 - 20 1,27 74 40 22,75 9,55 10 6 GF26A729.5046 GF26A129.5046

2) Ausführung ohne innerer Kühlschmierstoff-Zufuhr IKZ Andere Ausführungen auf Anfrage
Design without internal coolant supply IKZ Other designs upon request

420 Bestell-Beispiel · Ordering example: GF26A729.5003
