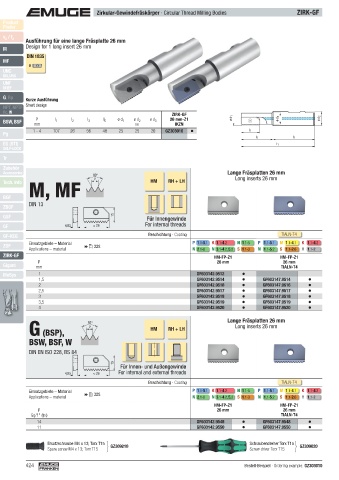

Zirkular-Gewindefräskörper · Circular Thread Milling Bodies ZIRK-GF
Product
Finder

v / f z
c
Ausführung für eine lange Fräsplatte 26 mm
Design for 1 long insert 26 mm
M
DIN 1835
MF
B
UNC
UN, UNS
UNF
UNEF
G, Rp Kurze Ausführung
Short design
NPT, NPTF
Rc, W
ZIRK-GF
P l l l l ø d ø d ø d 26 mm-Z1 ø d 1 ø d 3 ø d 2
BSW, BSF mm 1 2 3 5 1 h6 2 3 IKZN
1 - 4 107 26 56 48 25 25 20 GZ303010 l 2
Pg
l 5 l 3
EG (STI) l 1
SELF-LOCK
Tr
Zubehör
Accessories 60° Lange Fräsplatten 26 mm
Long inserts 26 mm
M, MF
Tech. Info P HM RH + LH

BGF
DIN 13
ZBGF
GSF 15 Für Innengewinde
GF 4,95 ≈ 26 For internal threads
GF-KEG Beschichtung · Coating TIALN-T4
ZGF Einsatzgebiete – Material  328 P 1.1- 5.1 K 1.1- 4.2 N 1.1-5 P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material N 2.1-6 N 3.1- 4.2, 5.2 S 1.1-3 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
ZIRK-GF HM-FP-Z1 HM-FP-Z1
P 26 mm 26 mm
Gigant mm TIALN-T4
MoSys 1 GF603142.9512
1,5 GF603142.9514 GF603147.9514
2 GF603142.9516 GF603147.9516
2,5 GF603142.9517 GF603147.9517
3 GF603142.9518 GF603147.9518
3,5 GF603142.9519 GF603147.9519
4 GF603142.9520 GF603147.9520

Lange Fräsplatten 26 mm
55°
P HM RH + LH Long inserts 26 mm
G (BSP),
BSW, BSF, W
DIN EN ISO 228, BS 84

15
Für Innen- und Außengewinde
4,95 ≈ 26 For internal and external threads
Beschichtung · Coating TIALN-T4
Einsatzgebiete – Material P 1.1- 5.1 K 1.1- 4.2 N 1.1-5 P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 2.1-6 N 3.1- 4.2, 5.2 S 1.1-3 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
HM-FP-Z1 HM-FP-Z1
P 26 mm 26 mm
Gg/1" (tpi) TIALN-T4
14 GF603142.9548 GF603147.9548
11 GF603142.9550 GF603147.9550

Ersatzschraube M4 x 13; Torx T15 ⎫ ⎬ GZ309210 Schraubendreher Torx T15 ⎫ ⎬ GZ309020
Spare screw M4 x 13; Torx T15 ⎭ Screw driver Torx T15 ⎭

424 Bestell-Beispiel · Ordering example: GZ303010
