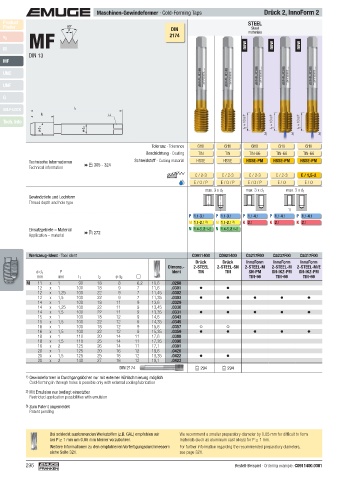

P. 296

Maschinen-Gewindeformer · Cold-Forming Taps Drück 2, InnoForm 2
Product STEEL STEEL H Z
Finder 60° DIN materials materials Materials of high CNC-controlled
Steel
Steel
P
MF
machines
tensile strength
v c 2174
M new new new
DIN 13
MF
UNC
UNF

SELF-LOCK l 1
l 2
Tech. Info
ø d 1 ø d 2
3) 3) 3) 3) 3) 3)
Toleranz · Tolerance 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX
Beschichtung · Coating TIN TIN TIN-66 TIN-66 TIN-66 TICN-67 TICN-67 TICN-67 TIN-T26 TIN-T26 TIN-80 TIN-80
Technische Informationen  305 - 324 Schneidstoff · Cutting material HSSE HSSE HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Technical information
C / 2-3 C / 2-3 C / 2-3 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 E / 1,5-2 C / 2-3 C / 2-3 C / 2-3 C / 2-3
E / O / P E / O / P E / O / P E / O E / O E / O / P E / O E / O E / O E E / O / P E / O
max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1 max. 3 x d 1
Gewindetiefe und Lochform
Thread depth and hole type
1) 1) 1) 1)
P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 3.1- 5.1 P 3.1- 5.1 P 3.1- 5.1 P 2.1- 5.1 P 2.1- 5.1 P 1.1- 5.1 P 1.1- 5.1
M 1.1- 2.1 2) M 1.1- 2.1 2) K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 M 1.1- 3.1 2) M 1.1- 3.1 2)
Einsatzgebiete – Material  272 N 1.4-5, 2.1-2 N 1.4-5, 2.1-2 K 2.1 K 2.1
Application – material N 2 .1-2, 2.4-5 N 2 .1-2, 2.4-5
S 1.1- 2.2 2) S 1.1- 2.2 2)
S 2.4 2) S 2.4 2)
Werkzeug-Ident · Tool ident C0911400 C0921400 C5217F00 C5237F00 C5317F00 C5216F00 C5236F00 C5316F00 C521W700 C523W700 C521Z700 C523Z700
Drück Drück InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm InnoForm
Dimens.- 2-STEEL 2-STEEL-SN 2-STEEL-M 2-STEEL-M 2-STEEL-M/E 2-STEEL-H 2-STEEL-H 2-STEEL-H/E 2-H-SN-PM 2-H-SN-IKZ 2-Z-SN-PM 2-Z-SN-IKZ
ø d 1 P Ident TIN TIN SN-PM SN-IKZ-PM SN-IKZ-PM SN-PM SN-IKZ-PM SN-IKZ-PM TIN-T26 PM-TIN-T26 TIN-80 PM-TIN-80
mm mm l 1 l 2 ø d 2 TIN-66 TIN-66 TIN-66 TICN-67 TICN-67 TICN-67
M 11 x 1 90 18 8 6,2 10,6 .0288 M 11 x 1
12 x 1 100 18 9 7 11,6 .0301 12 x 1
12 x 1,25 100 22 9 7 11,45 .0302 12 x 1,25
12 x 1,5 100 22 9 7 11,35 .0303 12 x 1,5
14 x 1 100 18 11 9 13,6 .0329 14 x 1
14 x 1,25 100 22 11 9 13,45 .0330 14 x 1,25
14 x 1,5 100 22 11 9 13,35 .0331 14 x 1,5
15 x 1 100 18 12 9 14,6 .0343 15 x 1
15 x 1,5 100 22 12 9 14,35 .0345 15 x 1,5
16 x 1 100 18 12 9 15,6 .0357 16 x 1
16 x 1,5 100 22 12 9 15,35 .0359 16 x 1,5
18 x 1 110 20 14 11 17,6 .0388 18 x 1
18 x 1,5 110 25 14 11 17,35 .0390 18 x 1,5
18 x 2 125 26 14 11 17,1 .0391 18 x 2
20 x 1 125 20 16 12 19,6 .0420 20 x 1
20 x 1,5 125 25 16 12 19,35 .0422 20 x 1,5
20 x 2 140 27 16 12 19,1 .0423 20 x 2
DIN 2174  294  294  295  295
1) Gewindeformen in Durchgangslöcher nur mit externer Kühlschmierung möglich
Cold-forming in through holes is possible only with external cooling/lubrication
2) Mit Emulsion nur bedingt einsetzbar
Restricted application possibilities with emulsion
3) Zum Patent angemeldet
Patent pending

Bei schlecht ausformenden Werkstoffen (z.B. GAL) empfehlen wir We recommend a smaller preparatory diameter by 0.05 mm for difﬁ cult to form
bei P ≥ 1 mm um 0,05 mm kleiner vorzubohren. materials (such as aluminium cast alloys) for P ≥ 1 mm.
Weitere Informationen zu den empfohlenen Vorfertigungsdurchmessern For further information regarding the recommended preparatory diameters,
siehe Seite 321. see page 321.

296 Bestell-Beispiel · Ordering example: C0911400.0301
