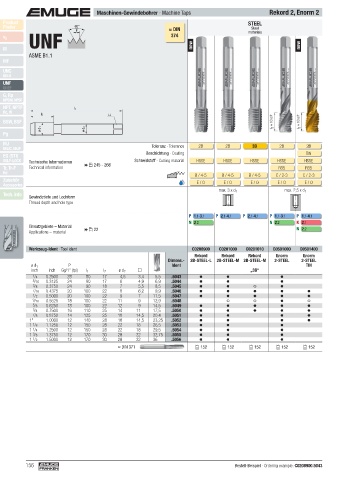

Page 156 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Rekord 2, Enorm 2
Product STEEL STEEL VA H
Finder 60° ≈ DIN materials materials Stainless steel Materials of high
Steel
Steel
UNF
P
tensile strength
materials
v c 374
M new new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2B 2B 3B 2B 2B 3B 2B 2B 2B 2B 2B 2BX
Beschichtung · Coating TIN NT TIN GLT-1 GLT-1 NT
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266 R35 R35 R35 R35 R35
Rd
B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3 B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3
Zubehör E / O E / O E / O E / O E / O E / O E / O / P E / O / P E / O / P E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1 max. 2,5 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2,5 x d 1 max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 2.1- 4.1 P 2.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1
N 2.2 N 2.2 K 2.1 N 2.2 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 K 1.1- 4.2
Einsatzgebiete – Material N 2.2 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 N 2.4-7
Applications – material  22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2 N 4.1, 5.1

Werkzeug-Ident · Tool ident C0208900 C0201000 C0201010 C0501000 C0501400 C0501010 C0203000 C0203100 C020C300 C0503000 C050C300 C0100501
Rekord Rekord Rekord Enorm Enorm Enorm Rekord Rekord Rekord Enorm Enorm Rekord
Dimens.- 2B-STEEL-L 2B-STEEL-M 2B-STEEL-M 2-STEEL 2-STEEL 2-STEEL 2B-VA 2B-VA 2B-VA 2-VA 2-VA 2A-H
ø d 1 P Ident TIN NT TIN GLT-1 GLT-1 NT
inch inch Gg/1" (tpi) l 1 l 2 ø d 2 „3B“ „3B“
1 /4 0.2500 28 80 17 4,5 3,4 5,5 .5043 1 /4 - 28
5 /16 0.3125 24 90 17 6 4,9 6,9 .5044 5 /16 - 24
3 /8 0.3750 24 90 18 7 5,5 8,5 .5045 3 /8 - 24
7 /16 0.4375 20 100 22 8 6,2 9,9 .5046 7 /16 - 20
1 /2 0.5000 20 100 22 9 7 11,5 .5047 1 /2 - 20
9 /16 0.5625 18 100 22 11 9 12,9 .5048 9 /16 - 18
5 /8 0.6250 18 100 22 12 9 14,5 .5049 5 /8 - 18
3 /4 0.7500 16 110 25 14 11 17,5 .5050 3 /4 - 16
7 /8 0.8750 14 125 25 18 14,5 20,4 .5051 7 /8 - 14
1" 1.0000 12 140 28 18 14,5 23,25 .5052 1" - 12
1 1 /8 1.1250 12 150 28 22 18 26,5 .5053 1 1 /8 - 12
1 1 /4 1.2500 12 150 28 22 18 29,5 .5054 1 1 /4 - 12
1 3 /8 1.3750 12 170 30 28 22 32,75 .5055 1 3 /8 - 12
1 1 /2 1.5000 12 170 30 28 22 36 .5056 1 1 /2 - 12
≈ DIN 371  152  152  152  152  152  153  153  153  153  153  153  153

156 Bestell-Beispiel · Ordering example: C0208900.5043
