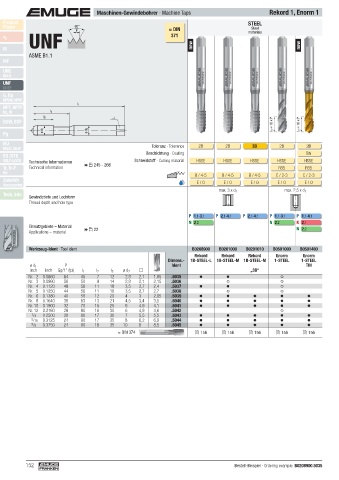

Page 152 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Rekord 1, Enorm 1
Product STEEL STEEL VA H
Finder 60° ≈ DIN materials materials Stainless steel Materials of high
Steel
Steel
P
UNF
tensile strength
materials
v c 371
M new new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
l 1
NPT, NPTF
Rc, W l 3
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2B 2B 3B 2B 2B 3B 2B 2B 2B 2B 2B 2BX
Beschichtung · Coating TIN NT TIN GLT-1 GLT-1 NT
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266 R35 R35 R35 R35 R35
Rd
B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3 B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3
Zubehör E / O E / O E / O E / O E / O E / O E / O / P E / O / P E / O / P E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1 max. 2,5 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2,5 x d 1 max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 2.1- 4.1 P 2.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1
N 2.2 N 2.2 K 2.1 N 2.2 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 K 1.1- 4.2
Einsatzgebiete – Material N 2.2 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 N 2.4-7
Applications – material  22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2 N 4.1, 5.1

Werkzeug-Ident · Tool ident B0208900 B0201000 B0201010 B0501000 B0501400 B0501010 B0203000 B0203100 B020C300 B0503000 B050C300 B0100501
Rekord Rekord Rekord Enorm Enorm Enorm Rekord Rekord Rekord Enorm Enorm Rekord
Dimens.- 1B-STEEL-L 1B-STEEL-M 1B-STEEL-M 1-STEEL 1-STEEL 1-STEEL 1B-VA 1B-VA 1B-VA 1-VA 1-VA 1A-H
ø d 1 P Ident TIN NT TIN GLT-1 GLT-1 NT
inch inch Gg/1" (tpi) l 1 l 2 l 3 ø d 2 „3B“ „3B“
Nr. 2 0.0860 64 45 7 12 2,8 2,1 1,85 .5035 Nr. 2 - 64
Nr. 3 0.0990 56 50 9 14 2,8 2,1 2,15 .5036 Nr. 3 - 56
Nr. 4 0.1120 48 56 11 18 3,5 2,7 2,4 .5037 Nr. 4 - 48
Nr. 5 0.1250 44 56 11 18 3,5 2,7 2,7 .5038 Nr. 5 - 44
Nr. 6 0.1380 40 56 12 20 4 3 2,95 .5039 Nr. 6 - 40
Nr. 8 0.1640 36 63 13 21 4,5 3,4 3,5 .5040 Nr. 8 - 36
Nr. 10 0.1900 32 70 15 25 6 4,9 4,1 .5041 Nr. 10 - 32
Nr. 12 0.2160 28 80 16 30 6 4,9 4,6 .5042 Nr. 12 - 28
1 /4 0.2500 28 80 17 30 7 5,5 5,5 .5043 1 /4 - 28
5 /16 0.3125 24 90 17 35 8 6,2 6,9 .5044 5 /16 - 24
3 /8 0.3750 24 90 18 35 10 8 8,5 .5045 3 /8 - 24
≈ DIN 374  156  156  156  156  156  157  157  157  157  157  157  157

152 Bestell-Beispiel · Ordering example: B0208900.5035
