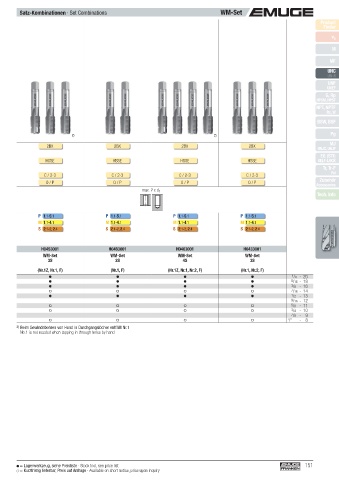

Satz-Kombinationen · Set Combinations WM-Set
Product
60° ≈ DIN Finder
P
UNC 352 v c

ASME B1.1 M
MF
UNC
UN-8
l 3
l 2 UNF
UNEF
G, Rp
≤ 1 /4
NPSM, NPSF
NPT, NPTF
l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2 > 1 /4
1) 2) 2) Pg
Toleranz · Tolerance 2BX 2BX 2BX 2BX 2BX MJ
UNJC, UNJF
Beschichtung · Coating
EG (STI)
Technische Informationen  245 - 266 Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE SELF-LOCK
Technical information Tr, Tr-F
Rd
C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3 C / 2-3
O / P O / P O / P O / P O / P O / P O / P O / P Zubehör
Accessories
max. 2 x d 1 max. 2 x d 1
Gewindetiefe und Lochform Tech. Info
Thread depth and hole type

P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1 P 1.1- 5.1
M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1 M 1.1- 4.1
Einsatzgebiete – Material S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4 S 2.1-2, 2.4
Applications – material  22

Werkzeug-Ident · Tool ident H0413019 H0423019 H0423029 H0423001 H0453001 H0483001 H0403001 H0433001
WM-Set WM-Set WM-Set WM-Set WM-Set WM-Set WM-Set WM-Set
Dimens.- V-Nr.1Z V-Nr.1 M-Nr.2 F 3S 2S 4S 3S
ø d 1 P Ident
inch inch Gg/1" (tpi) l 1 l 2 l 3 ø d 2 (Nr.1Z, Nr.1, F) (Nr.1, F) (Nr.1Z, Nr.1, Nr.2, F) (Nr.1, Nr.2, F)
1 /4 0.2500 20 56 16 28 6 4,9 5,1 .5009 1 /4 - 20
5 /16 0.3125 18 63 20 – 6 4,9 6,6 .5010 5 /16 - 18
3 /8 0.3750 16 70 22 – 7 5,5 8 .5011 3 /8 - 16
7 /16 0.4375 14 70 22 – 8 6,2 9,4 .5012 7 /16 - 14
1 /2 0.5000 13 75 25 – 9 7 10,8 .5013 1 /2 - 13
9 /16 0.5625 12 80 26 – 11 9 12,2 .5014 9 /16 - 12
5 /8 0.6250 11 80 27 – 12 9 13,5 .5015 5 /8 - 11
3 /4 0.7500 10 95 32 – 14 11 16,5 .5016 3 /4 - 10
7 /8 0.8750 9 100 32 – 18 14,5 19,5 .5017 7 /8 - 9
1" 1.0000 8 110 36 – 18 14,5 22,25 .5018 1" - 8
2) Beim Gewindebohren von Hand in Durchgangslöcher entfällt Nr.1
No.1 is not needed when tapping in through holes by hand

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 151
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
