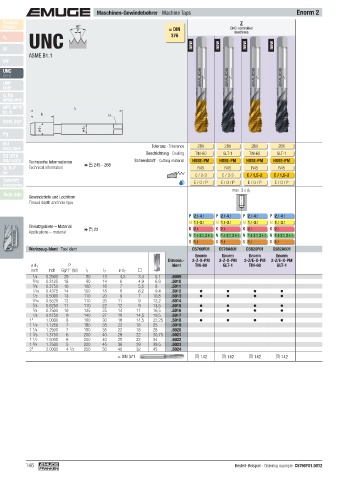

Page 146 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Enorm 2
Product Z
Finder 60° ≈ DIN CNC-controlled
UNC
P
machines
v c 376
M new new new new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2BX 2BX 2BX 2BX
Beschichtung · Coating TIN-60 GLT-1 TIN-60 GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Tr, Tr-F Technical information  245 - 266 R45 R45 R45 R45
Rd
C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2
Zubehör E / O / P E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1
M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 K 2.1 K 2.1 K 2.1
Applications – material  22
N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5
S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C5760F01 C576A601 C5820F01 C582A601
Enorm Enorm Enorm Enorm
Dimens.- 2-Z-X-PM 2-Z-X-PM 2-Z/E-X-PM 2-Z/E-X-PM
ø d 1 P Ident TIN-60 GLT-1 TIN-60 GLT-1
inch inch Gg/1" (tpi) l 1 l 2 ø d 2
1 /4 0.2500 20 80 13 4,5 3,4 5,1 .5009
5 /16 0.3125 18 90 14 6 4,9 6,6 .5010
3 /8 0.3750 16 100 16 7 5,5 8 .5011
7 /16 0.4375 14 100 18 8 6,2 9,4 .5012
1 /2 0.5000 13 110 20 9 7 10,8 .5013
9 /16 0.5625 12 110 20 11 9 12,2 .5014
5 /8 0.6250 11 110 22 12 9 13,5 .5015
3 /4 0.7500 10 125 25 14 11 16,5 .5016
7 /8 0.8750 9 140 27 18 14,5 19,5 .5017
1" 1.0000 8 160 30 18 14,5 22,25 .5018
1 1 /8 1.1250 7 180 35 22 18 25 .5019
1 1 /4 1.2500 7 180 35 22 18 28 .5020
1 3 /8 1.3750 6 200 40 28 22 30,75 .5021
1 1 /2 1.5000 6 200 40 28 22 34 .5022
1 3 /4 1.7500 5 220 45 36 29 39,5 .5023
2" 2.0000 4 1 /2 250 50 40 32 45 .5024
≈ DIN 371  142  142  142  142

146 Bestell-Beispiel · Ordering example: C5760F01.5012
