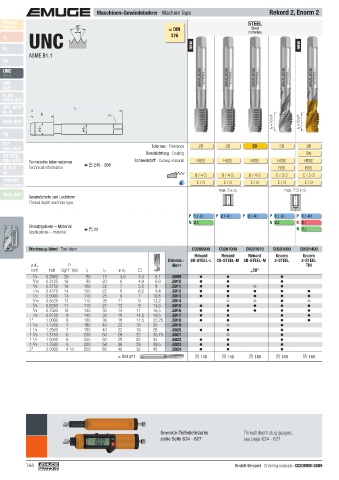

P. 144
Maschinen-Gewindebohrer · Machine Taps Rekord 2, Enorm 2
Product STEEL STEEL VA H
Finder 60° ≈ DIN materials materials Stainless steel Materials of high
Steel
Steel
UNC
P
materials
tensile strength
v c 376
M new new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2B 2B 3B 2B 2B 3B 2B 2B 2B 2B 2B 2BX
Beschichtung · Coating TIN NT TIN GLT-1 GLT-1 NT
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information 245 - 266 R35 R35 R35 R35 R35
Rd
B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3 B / 4-5 B / 4-5 B / 4-5 C / 2-3 C / 2-3 C / 2-3
Zubehör E / O E / O E / O E / O E / O E / O E / O / P E / O / P E / O / P E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1 max. 2,5 x d 1 max. 2,5 x d 1 max. 3 x d 1 max. 2,5 x d 1 max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 2.1- 4.1 P 2.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 3.1 P 1.1- 4.1 P 1.1- 3.1
N 2.2 N 2.2 K 2.1 N 2.2 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 K 1.1- 4.2
Einsatzgebiete – Material N 2.2 K 2.1 K 2.1 K 2.1 K 2.1 K 2.1 N 2.4-7
Applications – material 22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2 N 4.1, 5.1
Werkzeug-Ident · Tool ident C0208900 C0201000 C0201010 C0501000 C0501400 C0501010 C0203000 C0203100 C020C300 C0503000 C050C300 C0100501
Rekord Rekord Rekord Enorm Enorm Enorm Rekord Rekord Rekord Enorm Enorm Rekord
Dimens.- 2B-STEEL-L 2B-STEEL-M 2B-STEEL-M 2-STEEL 2-STEEL 2-STEEL 2B-VA 2B-VA 2B-VA 2-VA 2-VA 2A-H
ø d 1 P Ident TIN NT TIN GLT-1 GLT-1 NT
inch inch Gg/1" (tpi) l 1 l 2 ø d 2 „3B“ „3B“
1 /4 0.2500 20 80 17 4,5 3,4 5,1 .5009 1 /4 -20
5 /16 0.3125 18 90 20 6 4,9 6,6 .5010 5 /16 -18
3 /8 0.3750 16 100 22 7 5,5 8 .5011 3 /8 -16
7 /16 0.4375 14 100 22 8 6,2 9,4 .5012 7 /16 -14
1 /2 0.5000 13 110 25 9 7 10,8 .5013 1 /2 -13
9 /16 0.5625 12 110 26 11 9 12,2 .5014 9 /16 -12
5 /8 0.6250 11 110 27 12 9 13,5 .5015 5 /8 -11
3 /4 0.7500 10 125 30 14 11 16,5 .5016 3 /4 -10
7 /8 0.8750 9 140 32 18 14,5 19,5 .5017 7 /8 - 9
1" 1.0000 8 160 36 18 14,5 22,25 .5018 1" - 8
1 1 /8 1.1250 7 180 40 22 18 25 .5019 1 1 /8 - 7
1 1 /4 1.2500 7 180 40 22 18 28 .5020 1 1 /4 - 7
1 3 /8 1.3750 6 200 50 28 22 30,75 .5021 1 3 /8 - 6
1 1 /2 1.5000 6 200 50 28 22 34 .5022 1 1 /2 - 6
1 3 /4 1.7500 5 220 58 36 29 39,5 .5023 1 3 /4 - 5
2" 2.0000 4 1 /2 250 65 40 32 45 .5024 2" - 4 1 /2
≈ DIN 371 140 140 140 140 140 141 141 141 141 141 141 141
Gewinde-Tiefenlehrdorne Thread depth plug gauges,
siehe Seite 624 - 627 see page 624 - 627
144 Bestell-Beispiel · Ordering example: C0208900.5009
