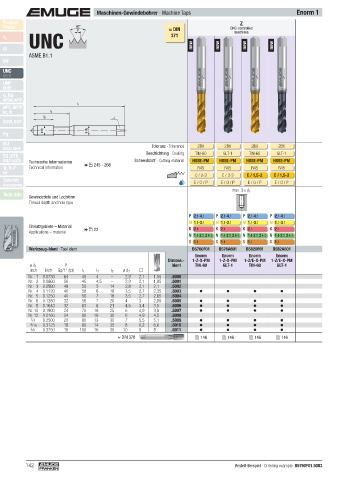

Page 142 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Enorm 1
Product Z
Finder 60° ≈ DIN CNC-controlled
UNC
P
machines
v c 371
M new new new new
ASME B1.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
l 1
NPT, NPTF
Rc, W l 3
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2BX 2BX 2BX 2BX
Beschichtung · Coating TIN-60 GLT-1 TIN-60 GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Tr, Tr-F Technical information  245 - 266 R45 R45 R45 R45
Rd
C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2
Zubehör E / O / P E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1 P 2.1- 4.1
M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 K 2.1 K 2.1 K 2.1
Applications – material  22
N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5 N 1.4- 2.2, 2.4-5
S 1.1 S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident B5760F01 B576A601 B5820F01 B582A601
Enorm Enorm Enorm Enorm
Dimens.- 1-Z-X-PM 1-Z-X-PM 1-Z/E-X-PM 1-Z/E-X-PM
ø d 1 P Ident TIN-60 GLT-1 TIN-60 GLT-1
inch inch Gg/1" (tpi) l 1 l 2 l 3 ø d 2
Nr. 1 0.0730 64 45 4 – 2,8 2,1 1,55 .5000
Nr. 2 0.0860 56 45 4,5 – 2,8 2,1 1,85 .5001
Nr. 3 0.0990 48 50 5 14 2,8 2,1 2,1 .5002
Nr. 4 0.1120 40 56 6 18 3,5 2,7 2,35 .5003
Nr. 5 0.1250 40 56 7 18 3,5 2,7 2,65 .5004
Nr. 6 0.1380 32 56 7 20 4 3 2,85 .5005
Nr. 8 0.1640 32 63 8 21 4,5 3,4 3,5 .5006
Nr. 10 0.1900 24 70 10 25 6 4,9 3,9 .5007
Nr. 12 0.2160 24 80 10 30 6 4,9 4,5 .5008
1 /4 0.2500 20 80 13 30 7 5,5 5,1 .5009
5 /16 0.3125 18 90 14 35 8 6,2 6,6 .5010
3 /8 0.3750 16 100 16 39 10 8 8 .5011
≈ DIN 376  146  146  146  146

142 Bestell-Beispiel · Ordering example: B5760F01.5003
