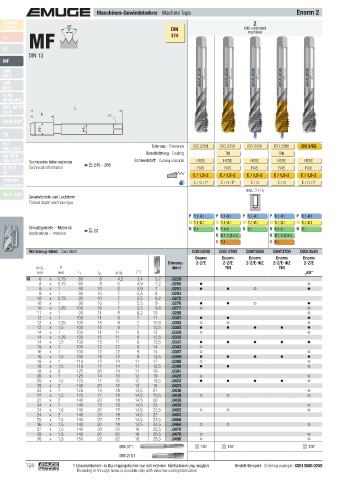

Page 124 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Enorm 2
Product
Product Z Z SPEED
Finder
Finder 60° DIN CNC-controlled CNC-controlled High-speed
MF
P
machines
machines
cutting
v c v c 374
M M
DIN 13
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF ISO 2/6H ISO 2/6H ISO 2/6H ISO 2/6H ISO 3/6G ISO 3/6G 6HX 6HX 6HX 6HX 6HX 6HX 6HX 6HX
Beschichtung · Coating TIN TIN TIN TICN TICN TICN TICN TIN-70 TIN-70 TIN-60 TIN-60
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE HSSE-PM HSSE-PM HSSE-PM HSSE-PM
Tr, Tr-F Technical information  245 - 266 R45 R45 R45 R45 R45 R45 R45 R45
Rd
E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 E / 1,5-2 C / 2-3 C / 2-3 E / 1,5-2 E / 1,5-2 B / 4-5 B / 4-5 C / 2-3 C / 2-3
Zubehör E / O / P E / O / P E / O E / O E / O / P E / O / P E E E E E E E E
Accessories
max. 3 x d 1 max. 3 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 2 x d 1 max. 3 x d 1 max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
1) 1)
P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 P 1.1- 4.1 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 K 1.1- 4.2 P 1.1- 4.1 P 1.1- 4.1 P 2.1- 4.1 P 2.1- 4.1
M 1.1- 2.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 M 1.1- 2.1 M 1.1- 3.1 N 1.4-6 N 1.4-6 N 1.4-6 N 1.4-6 K 2.1-2 K 2.1-2
Einsatzgebiete – Material N 2.1 N 1.4-6 N 2.1 N 1.4-6 N 2.1 N 1.4-6 N 1.4-6 N 1.4-6
Applications – material  22 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5 N 2.1-2, 2.4-5
S 1.1 S 1.1 S 1.1
Werkzeug-Ident · Tool ident C0513500 C0513700 C0973500 C0973700 C0513520 C0513720 C3159401 C3179401 C3169401 C3189401 C3208F01 C3258F01 C3600F01 C3650F01
Enorm Enorm Enorm Enorm Enorm Enorm Rekord Rekord Rekord Rekord Rekord Rekord Enorm Enorm
Dimens.- 2-Z/E 2-Z/E 2-Z/E-IKZ 2-Z/E-IKZ 2-Z/E 2-Z/E 2A-SPEED 2A-SPEED 2A-SPEED/E 2A-SPEED/E 2B-Z-SPEED 2B-Z-SPEED 2-Z-SPEED 2-Z-SPEED
ø d 1 P Ident TIN TIN TIN IKZ-TICN IKZN-TICN IKZ-TICN IKZN-TICN PM-TIN-70 IKZN-PM X-PM X-IKZ-PM
mm mm l 1 l 2 ø d 2 „6G“ „6G“ TIN-70 TIN-60 TIN-60
M 6 x 0,75 80 8 4,5 3,4 5,2 .0229 M 6 x 0,75
8 x 0,75 80 8 6 4,9 7,2 .0250 8 x 0,75
8 x 1 90 10 6 4,9 7 .0251 8 x 1
9 x 1 90 10 7 5,5 8 .0263 9 x 1
10 x 0,75 90 10 7 5,5 9,2 .0275 10 x 0,75
10 x 1 90 10 7 5,5 9 .0276 10 x 1
10 x 1,25 100 16 7 5,5 8,8 .0277 10 x 1,25
11 x 1 90 11 8 6,2 10 .0288 11 x 1
12 x 1 100 11 9 7 11 .0301 12 x 1
12 x 1,25 100 15 9 7 10,8 .0302 12 x 1,25
12 x 1,5 100 15 9 7 10,5 .0303 12 x 1,5
14 x 1 100 11 11 9 13 .0329 14 x 1
14 x 1,25 100 15 11 9 12,8 .0330 14 x 1,25
14 x 1,5 100 15 11 9 12,5 .0331 14 x 1,5
15 x 1 100 12 12 9 14 .0343 15 x 1
16 x 1 100 12 12 9 15 .0357 16 x 1
16 x 1,5 100 15 12 9 14,5 .0359 16 x 1,5
18 x 1 110 13 14 11 17 .0388 18 x 1
18 x 1,5 110 17 14 11 16,5 .0390 18 x 1,5
18 x 2 125 20 14 11 16 .0391 18 x 2
20 x 1 125 14 16 12 19 .0420 20 x 1
20 x 1,5 125 17 16 12 18,5 .0422 20 x 1,5
20 x 2 140 20 16 12 18 .0423 20 x 2
22 x 1 125 14 18 14,5 21 .0436 22 x 1
22 x 1,5 125 17 18 14,5 20,5 .0438 22 x 1,5
22 x 2 140 20 18 14,5 20 .0439 22 x 2
24 x 1 140 15 18 14,5 23 .0450 24 x 1
24 x 1,5 140 20 18 14,5 22,5 .0452 24 x 1,5
24 x 2 140 20 18 14,5 22 .0453 24 x 2
25 x 1,5 140 20 18 14,5 23,5 .0458 25 x 1,5
26 x 1,5 140 20 18 14,5 24,5 .0464 26 x 1,5
27 x 1,5 140 20 20 16 25,5 .0470 27 x 1,5
28 x 1,5 140 20 20 16 26,5 .0476 28 x 1,5
30 x 1,5 150 22 22 18 28,5 .0490 30 x 1,5
DIN 371  107  107  107  107
DIN 2181
124 1) Gewindebohren in Durchgangslöcher nur mit externer Kühlschmierung möglich Bestell-Beispiel · Ordering example: C0513500.0250
Threading in through holes is possible only with external cooling/lubrication
