Tolerance values

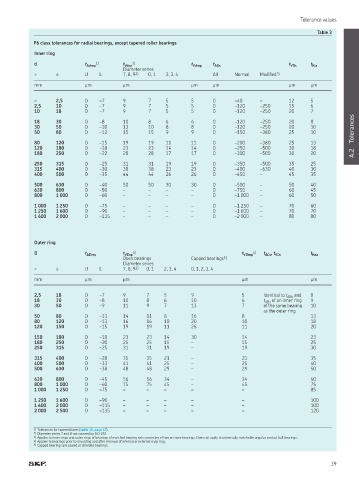

Table 3
P6 class tolerances for radial bearings, except tapered roller bearings

Inner ring
d t ∆dmp t Vdsp 1) t Vdmp t ∆Bs t VBs t Kia
1)
Diameter series
> ≤ U L 7, 8, 9 2) 0, 1 2, 3, 4 All Normal Modiied 3)
mm µm µm µm µm µm µm

– 2,5 0 –7 9 7 5 5 0 –40 – 12 5
2,5 10 0 –7 9 7 5 5 0 –120 –250 15 6
10 18 0 –7 9 7 5 5 0 –120 –250 20 7

18 30 0 –8 10 8 6 6 0 –120 –250 20 8
30 50 0 –10 13 10 8 8 0 –120 –250 20 10 Tolerances
50 80 0 –12 15 15 9 9 0 –150 –380 25 10
80 120 0 –15 19 19 11 11 0 –200 –380 25 13
120 180 0 –18 23 23 14 14 0 –250 –500 30 18
180 250 0 –22 28 28 17 17 0 –300 –500 30 20 A.2
250 315 0 –25 31 31 19 19 0 –350 –500 35 25
315 400 0 –30 38 38 23 23 0 –400 –630 40 30
400 500 0 –35 44 44 26 26 0 –450 – 45 35
500 630 0 –40 50 50 30 30 0 –500 – 50 40
630 800 0 –50 – – – – 0 –750 – 60 45
800 1 000 0 –60 – – – – 0 –1 000 – 60 50
1 000 1 250 0 –75 – – – – 0 –1 250 – 70 60
1 250 1 600 0 –90 – – – – 0 –1 600 – 70 70
1 600 2 000 0 –115 – – – – 0 –2 000 – 80 80

Outer ring
D t ∆Dmp t VDsp 4) t VDmp 4) t ∆Cs , t VCs t Kea
Open bearings Capped bearings 5)
Diameter series
> ≤ U L 7, 8, 9 2) 0, 1 2, 3, 4 0, 1, 2, 3, 4
mm µm µm µm µm

2,5 18 0 –7 9 7 5 9 5 Identical to t ∆Bs and 8
18 30 0 –8 10 8 6 10 6 t VBs of an inner ring 9
30 50 0 –9 11 9 7 13 7 of the same bearing 10
as the outer ring
50 80 0 –11 14 11 8 16 8 13
80 120 0 –13 16 16 10 20 10 18
120 150 0 –15 19 19 11 25 11 20
150 180 0 –18 23 23 14 30 14 23
180 250 0 –20 25 25 15 – 15 25
250 315 0 –25 31 31 19 – 19 30

315 400 0 –28 35 35 21 – 21 35
400 500 0 –33 41 41 25 – 25 40
500 630 0 –38 48 48 29 – 29 50
630 800 0 –45 56 56 34 – 34 60
800 1 000 0 –60 75 75 45 – 45 75
1 000 1 250 0 –75 – – – – – 85
1 250 1 600 0 –90 – – – – – 100
1 600 2 000 0 –115 – – – – – 100
2 000 2 500 0 –135 – – – – – 120

1) Tolerances for tapered bores (table 11, page 47).
2) Diameter series 7 and 8 not covered by ISO 492.
3) Applies to inner rings and outer rings of bearings of matched bearing sets consisting of two or more bearings. Does not apply to universally matchable angular contact ball bearings.
4) Applies to bearings prior to mounting and after removal of internal or external snap ring.
5) Capped bearings are sealed or shielded bearings.
