A.2 Tolerances

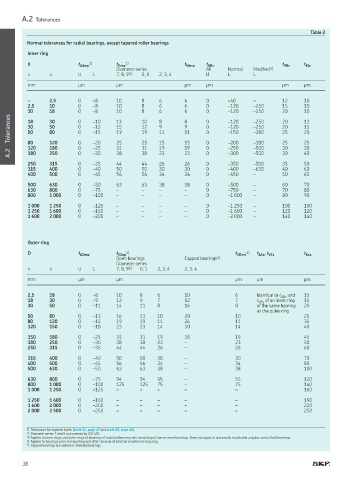

Table 2
Normal tolerances for radial bearings, except tapered roller bearings

Inner ring
d t ∆dmp 1) t Vdsp 1) t Vdmp t ∆Bs t VBs t Kia
Diameter series All Normal Modiied 3)
> ≤ U L 7, 8, 9 2) 0, 1 2, 3, 4 U L L
mm µm µm µm µm µm µm

– 2,5 0 –8 10 8 6 6 0 –40 – 12 10
2,5 10 0 –8 10 8 6 6 0 –120 –250 15 10
10 18 0 –8 10 8 6 6 0 –120 –250 20 10
Tolerances 18 30 0 0 0 –10 13 10 8 9 11 8 9 11 0 0 0 –120 –250 20 13
30
–12
15
20
50
–120
12
15
–250
80
–380
25
–150
20
50
19
19
–15
–250
19
31
–500
180
19
30
–25
31
120
30
A.2 80 120 0 0 0 –20 25 25 15 15 0 0 0 –200 –380 25 25
30
250
–30
–500
180
38
23
23
38
40
–300
250 315 0 –35 44 44 26 26 0 –350 –500 35 50
315 400 0 –40 50 50 30 30 0 –400 –630 40 60
400 500 0 –45 56 56 34 34 0 –450 – 50 65
500 630 0 –50 63 63 38 38 0 –500 – 60 70
630 800 0 –75 – – – – 0 –750 – 70 80
800 1 000 0 –100 – – – – 0 –1 000 – 80 90
1 000 1 250 0 –125 – – – – 0 –1 250 – 100 100
1 250 1 600 0 –160 – – – – 0 –1 600 – 120 120
1 600 2 000 0 –200 – – – – 0 –2 000 – 140 140
Outer ring
4)
D t ∆Dmp t VDsp 4) t VDmp t ΔCs , t VCs t Kea
Open bearings Capped bearings 5)
Diameter series
> ≤ U L 7, 8, 9 2) 0, 1 2, 3, 4 2, 3, 4
mm µm µm µm µm µm
2,5 18 0 –8 10 8 6 10 6 Identical to t ∆Bs and 15
18 30 0 –9 12 9 7 12 7 t VBs of an inner ring 15
30 50 0 –11 14 11 8 16 8 of the same bearing 20
as the outer ring
50 80 0 –13 16 13 10 20 10 25
80 120 0 –15 19 19 11 26 11 35
120 150 0 –18 23 23 14 30 14 40
150 180 0 –25 31 31 19 38 19 45
180 250 0 –30 38 38 23 – 23 50
250 315 0 –35 44 44 26 – 26 60
315 400 0 –40 50 50 30 – 30 70
400 500 0 –45 56 56 34 – 34 80
500 630 0 –50 63 63 38 – 38 100
630 800 0 –75 94 94 55 – 55 120
800 1 000 0 –100 125 125 75 – 75 140
1 000 1 250 0 –125 – – – – – 160
1 250 1 600 0 –160 – – – – – 190
1 600 2 000 0 –200 – – – – – 220
2 000 2 500 0 –250 – – – – – 250
1) Tolerances for tapered bores (table 11, page 47 and table 12, page 48).
2) Diameter series 7 and 8 not covered by ISO 492.
3) Applies to inner rings and outer rings of bearings of matched bearing sets consisting of two or more bearings. Does not apply to universally matchable angular contact ball bearings.
4) Applies to bearings prior to mounting and after removal of internal or external snap ring.
5) Capped bearings are sealed or shielded bearings.
