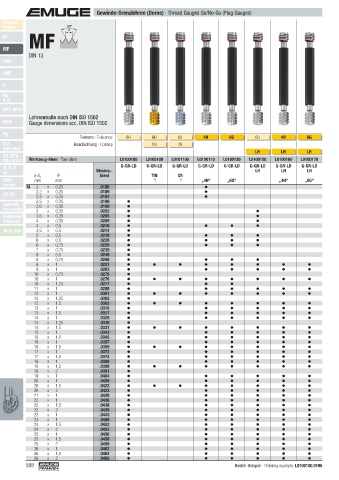

Gewinde-Grenzlehren (Dorne) · Thread Gauges Go/No-Go (Plug Gauges)
Product
Finder 60°
MF
P
M
MF
DIN 13
UNC

UNF
G
Rp
R, Rc
NPT, NPTF
Lehrenmaße nach DIN ISO 1502
BSW Gauge dimensions acc. DIN ISO 1502

Pg
Toleranz · Tolerance 6H 6H 6H 4H 6G 6H 4H 6G
MJ Beschichtung · Coating TIN CR
UNJC, UNJF
LH LH LH
EG (STI)
SELF-LOCK Werkzeug-Ident · Tool ident L0100100 L0105100 L0101100 L0100110 L0100120 L0100150 L0100160 L0100170
Tr, Tr-F G-GR-LD G-GR-LD G-GR-LD G-GR-LD G-GR-LD G-GR-LD G-GR-LD G-GR-LD
Rd Dimens.- LH LH LH
ø d 1 P Ident TIN CR
Glatt mm mm 1) 1) „4H“ „6G“ „4H“ „6G“
Smooth M 2 x 0,25 .0186
2,2 x 0,25 .0189
GT, TD 2,3 x 0,25 .0192
2,5 x 0,35 .0196
Zubehör 2,6 x 0,35 .0199
Accessories 3 x 0,35 .0202
Kalibrieren 3,5 x 0,35 .0205
Calibration 4 x 0,35 .0209
4 x 0,5 .0210
Tech. Info 4,5 x 0,5 .0214
5 x 0,5 .0218
6 x 0,5 .0228
6 x 0,75 .0229
7 x 0,75 .0239
8 x 0,5 .0249
8 x 0,75 .0250
8 x 1 .0251
9 x 1 .0263
10 x 0,75 .0275
10 x 1 .0276
10 x 1,25 .0277
11 x 1 .0288
12 x 1 .0301
12 x 1,25 .0302
12 x 1,5 .0303
13 x 1 .0315
13 x 1,5 .0317
14 x 1 .0329
14 x 1,25 .0330
14 x 1,5 .0331
15 x 1 .0343
15 x 1,5 .0345
16 x 1 .0357
16 x 1,5 .0359
17 x 1 .0372
17 x 1,5 .0374
18 x 1 .0388
18 x 1,5 .0390
18 x 2 .0391
19 x 1 .0404
20 x 1 .0420
20 x 1,5 .0422
20 x 2 .0423
21 x 1 .0428
22 x 1 .0436
22 x 1,5 .0438
22 x 2 .0439
23 x 1 .0443
24 x 1 .0450
24 x 1,5 .0452
24 x 2 .0453
25 x 1 .0456
25 x 1,5 .0458
25 x 2 .0459
26 x 1 .0462
26 x 1,5 .0464
26 x 2 .0465
588 Bestell-Beispiel · Ordering example: L0100100.0196
